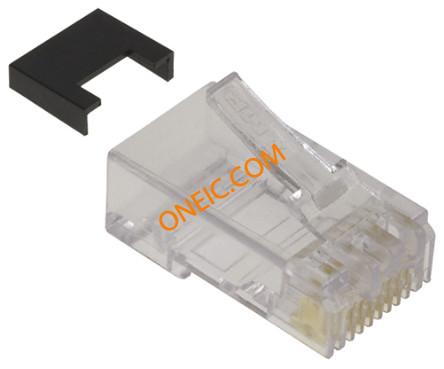

5-569278-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5e modular plug, 8/8, solid wire Modular Connectors / Ethernet Connectors 8 ROUND CABLE Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round SolidSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, ModularPlug,Preloaded,8Position,24-28AWG,Cat5e Modular UTP Plug RJ45 |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 150 V | 最大额定电流 | 1.5 A |
| 最小供电电压 | 150VAC | 连接器类型 - 电压输入 | Cat5 |
机械参数
| 颜色 | Translucent - Clear | 深度 | 22.74 mm |
| 间距 | 1.02 mm | 高度 | 10.83 mm |
| 长度 | 0.895" (22.74mm) | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 电缆类型 | Round Cable, Solid Wires |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 电缆开口 | 0.190 - 0.199 in | 外壳颜色 | Clear |
| 安装类型 | Cable Mount | 电缆直径 | 24 Sol |
| 导体类型 | 8 | 连接器类型 | Modular Plug |
| 接触镀层 | Gold | 安装样式 | Cable |
| 封装形式 | 100 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 11.79 mm |
| 主要材料 | Modular | 触点数 | 8 POS |
| 供应商器件封装 | Non Keyed | 接触镀层厚度 | 50µin (1.27µm) |
| 每排/每行位置数 | 8P | ||
产品信息
| 类型 | Modular Plug | 等级 | Cat5e |
| 连接器性别 | PL | 系列 | AMP |
| 插头类型 | Modular UTP | USOC 编码 | RJ45 |
| 适配器系列 | AMP | 类别编号 | Cat 5e |
| 端口数 | 1 | 工作高度 | 8 |
| 射频系列/标准 | 569278 | 性能类别 | Cat 5 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 工作温度 | -40C to 60C |
文档与媒体
相关型号
