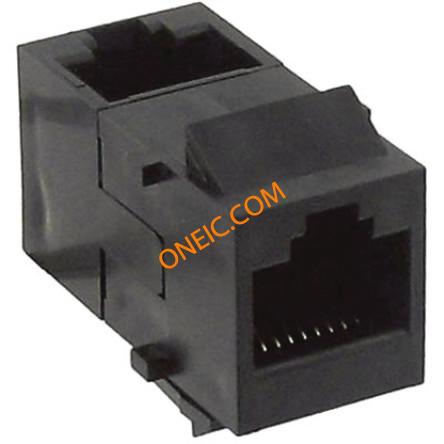

555051-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Coupler RCP/RCP 8/8 POS RA Panel Mount 1/1 Port Cat 3 Modular Couplers COUPLER MODULAR 8POS-8POS Cat 3 RJ45 R/A MJ/MJ modular coupler Modular Connectors / Ethernet Connectors 8 COUPLER R/A Conn Modular Coupler RCP/RCP 8/8 POS RA Panel Mount 1/1 Port Cat 3 Product Highlights:Number of Positions = 8Body Style = Right AngleNot KeyedCoupler Type = MJ/MJSearch Keywords:phone plugs, phone jacks, input/output, box to box, ADAPTER, RJ45, JACK TO JACK, 8WAY Coupler,Modular;PhosphorBronze;PanelMount;Female;GoldoverNickel;MJ/MJ 8 Position Unshielded Right Angle Panel Mount MJ/MJ Modular Coupler |
| 分类 |
商业参数
| 产品 | Accessories | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 连接器类型 - 电压输入 | Cat3 | ||
机械参数

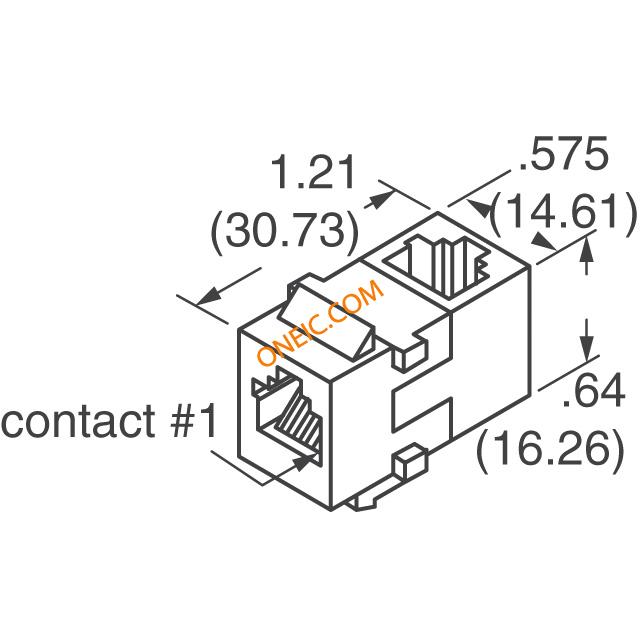

| 颜色 | Black | 深度 | 30.73 mm |
| 高度 | 16.26 mm | 重量 | 0.005 |
| 电缆类型 | TwistedPair | 方向 | Right Angle |
| 耦合器类型 | MJ/MJ | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Right |
| 连接器类型 | Modular Socket | 接触镀层 | Gold over Nickel |
| 安装样式 | Panel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyphenylene Oxide (PPO) | 总长度 | 14.61 mm |
| 主要材料 | Modular | 触点数 | 8/8 |
| 位数 | 8 | 第二连接器性别 | :Socket |
| 外部壳体颜色 | Black | 内部壳体颜色 | Black |
| 外部触点表面处理 | Gold | 内部触点镀层 | Gold |
| 外部触点材料 | Phosphor Bronze | 外部壳体材料 | Polyphenylene Oxide (PPO) |
| 内部触点材料 | Phosphor Bronze | 内部壳体材料 | Polyphenylene Oxide (PPO) |
| 内部类型（适配器端） | Modular Jack 8p8c (RJ45, Ethernet), Right Angle | 每排/每行位置数 | 8C |
| 第一连接器安装特征 | :Socket | 外部触点镀层厚度 | 50µin (1.27µm) |
| 内部触点镀层厚度 | 50µin (1.27µm) | ||
产品信息
| 类型 | Modular Coupler | 样式 | Modular |
| 连接器性别 | RCP/RCP | 系列 | Modular Couplers |
| USOC 编码 | RJ45 | 摄像头类型 | Modular Jack 8p8c (RJ45, Ethernet) |
| 性能 | Cat3 | 编码、键控 | No |
| 制造商全称 | AMP | 图案编号 | One-to-one |
| 类别编号 | Cat 3 | 端口数 | 2 |
| 射频系列/标准 | 555051 | 性能类别 | Cat 3 |
| 转换端（适配器端） | :RJ45 | 转换自（适配器端） | :RJ45 |
| 转换前位置数 | :8 | ||
环境参数
| 额定等级 | Cat3 | ||
