点击放大查看

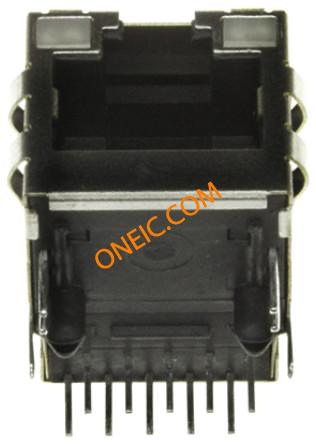

1-6605834-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Modular Connectors / Ethernet Connectors 1X1 7DN2 7D15 G/G MAG45 Integrated Magnetic, Stacked (Mag45) and Power over Ethernet (PoE) Mag jack RJ45 W/LED 10/100 POE R/A MODULAR, JACK, THT, R/A, RJ45, 8P8C MagjackRJ45W/LED10/100POER/A Socket; RJ45; PIN:8; shielded, with LED; gold plated; THT |
| 分类 |
合规参数
| RoHS | Compliant | 海关税号 | 85412100 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :ANSI X3.263, IEEE 802.3, UL203973 recognised |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| LED | With | 核心类型 | 715 |
| 阻抗 | 100 | 信号类型 | Auto MDI/MDIX |
| 电容 @ Vr, F | Without | 导体数量 | 8 |
| 连接器类型 - 电压输入 | :- | 匝数比 - 初级:次级 | 1:1 |
机械参数
| 深度 | 21.59mm | 宽度 | 15.24mm |
| 长度 | 18.41mm | 重量 | 0.001 |
| 材料（通用） | :Thermoplastic Polyester | LED颜色 | Green - 250 ohm resistor |
| 方向 | Inverted - Latch Up | 屏蔽类型 | Yes |
| 安装类型 | THT | 外壳镀层 | Semi-Bright Nickel (Pre-plated) |
| 行程角度 | RightAngle | 连接器类型 | Without |
| 接触镀层 | Gold over Nickel | 安装样式 | Thru Hole |
| 屏蔽材料 | Brass | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 63 |
| 主要材料 | Modular | 连接器 - 电缆 | socket |
| 底部端接 | Without | 照明颜色 | :Green, Green |
| 触点数 | :8 | 屏蔽层端接方式 | With |
| 接触件端接 | :Through Hole Right Angle | 绝缘材料 - 类型 | Without |
| 位数 | :8 | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | 8p8c | ||
产品信息
| SPG | 63 | 类型 | Single Port |
| 连接器性别 | Female | 系列 | :Mag45 |
| 制造商全称 | Transpower | 规格说明 | RJ45 |
| 端口数 | :1 | 单元数量 | 1 |
| 插孔配置 | 1 x 1 | ||
环境参数
| 温度额定值 | Office / Premises (0 ºC to +70 ºC) | 工作温度 | :70°C |
