点击放大查看
5-6605308-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port Integrated Magnetic, Stacked (Mag45) and Power over Ethernet (PoE) Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 12 Terminal 1 Port Product Highlights:10/100BASE-T Ethernet ApplicationComponent Type = Single PortMagnetic Circuit = 326P1Turns Ratio = 1:11 x 1 Jack ConfigurationSearch Keywords:IEEE 802.3, ANSI X3.263, physical layer transceiver chip (phy), 10/100BASE-T, modular jacks, NIC, Network Interface Cards, PC Cards, input/output, box to box, Power Over Ethernet, PoE, POE, Mag45, MagJack, Cat5e, 7mm centerline, 10/100/1000BASE-T, RJ point 5, RJ.5, double density, next-generation Ethernet, modular, data center switching, high density Ethernet, server I/O, wiring closet switching, routing, PlanarMag, integrated magnetics, ICM, Integrated Circuit Magnetics JACK, MAG45, THRU HOLE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| LED | With | 核心类型 | 326P1 |
| 阻抗 | 100 | 信号类型 | NIC |
| 额定电压 | :150V | 电容 @ Vr, F | 2KV |
| 导体数量 | 8 | 匝数比 - 初级:次级 | 1:1 |
机械参数
| 间距 | 2.54 mm | 重量 | 0.01 |
| 材料（通用） | :Thermoplastic Polyester | LED颜色 | Green - 250 ohm resistor |
| 方向 | Standard - Latch Down | 屏蔽类型 | Yes |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 外壳镀层 | Semi-Bright Nickel (Pre-plated) | 连接器类型 | Without |
| 接触镀层 | :Gold | 安装样式 | Thru Hole |
| 壳体镀层 | :Semi-Bright Nickel | 屏蔽材料 | Brass |
| 触头材料 | :Phosphor Bronze | 壳体材料 | Thermoplastic Polyester (PET) |
| 底部端接 | With | 触点数 | 8 |
| 屏蔽层端接方式 | With | 接触件端接 | :Through Hole Right Angle |
| 绝缘材料 - 类型 | Without | 位数 | :8 |
产品信息
| 类型 | RJ-45 Integrated Magnetics | 连接器性别 | F |
| 系列 | :N | 制造商全称 | Tyco Electronics |
| 端口数 | :1 | 插孔配置 | 1 x 1 |
环境参数
| 温度额定值 | Office / Premises (0 ºC to +70 ºC) | 工作温度 | :85°C |
相关型号
5-569552-3
te connectivity / amp
Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Cat5e modular plug,8/8,shielded,stranded Modular Connectors / Ethernet Connectors 8P ROUND STRND Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, HI-PERF, FTP Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; shielded, with conductor guide
SS-60000-009
bel
Conn Telephone/Telecom F 8 POS 2.03mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 6
6605759-1
TE Connectivity / AMP
モジュラーコネクタ/Ethernetコネクタ 1X1 7N2 726 CAP MAG45 Integrated Magnetic, Stacked (Mag45) and Power over Ethernet (PoE) Modular Connectors / Ethernet Connectors 1X1 7N2 726 CAP MAG45 Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Conn RJ-45 Integrated Magnetics F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Product Highlights:10/100BASE-T Ethernet ApplicationSingle Port ConfigurationJack Type = RJ45Magnetic Circuit = 726Turns Ratio = 1:1Search Keywords:IEEE 802.3, ANSI X3.263, physical layer transceiver chip (phy), 10/100BASE-T, modular jacks, NIC, Network Interface Cards, PC Cards, input/output, box to box, Power Over Ethernet, PoE, POE, Mag45, MagJack, Cat5e, 7mm centerline, 10/100/1000BASE-T, RJ point 5, RJ.5, double density, next-generation Ethernet, modular, data center switching, high density Ethernet, server I/O, wiring closet switching, routing, PlanarMag, integrated magnetics, ICM, Integrated Circuit Magnetics MODULAR, JACK, THT, R/A, RJ45, 8P8C MagjackRJ45Sheilded10/100BaseTR/A

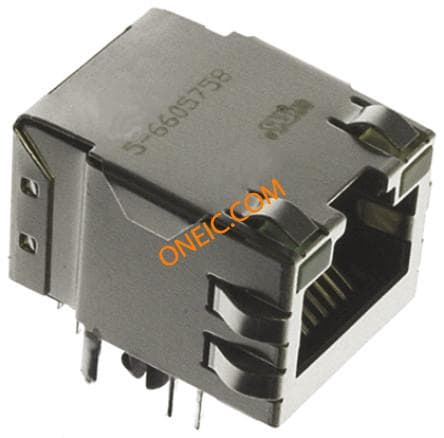

5-6605758-1
