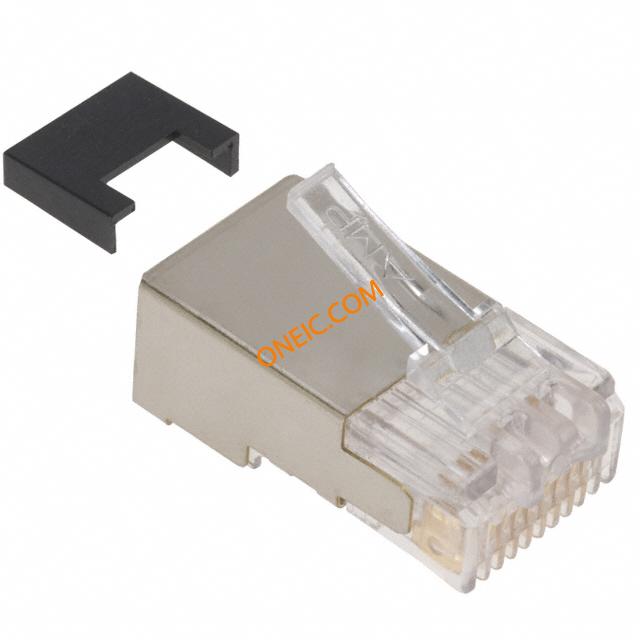

5-569552-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Cat5e modular plug,8/8,shielded,stranded Modular Connectors / Ethernet Connectors 8P ROUND STRND Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, HI-PERF, FTP Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; shielded, with conductor guide |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369001 |
| 认证机构 | UL,CSA | 材料阻燃等级 | UL94V-2 |
电气参数
| 以太网 | Cat 5e | 额定电压 | 150 V |
| 最大额定电流 | 1.5 A | 连接器类型 - 电压输入 | Cat5 |
机械参数
| 颜色 | Translucent - Clear | 间距 | 1.02 mm |
| 长度 | 0.915" (23.24mm) | 重量 | 0.0223 |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 电缆类型 | Round Cable, Stranded Wires | 导线线规 | 24-26 AWG |
| 方向 | Straight | 屏蔽类型 | UTP |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Modular Plug |
| 接触镀层 | Gold | 安装样式 | for cable |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 100 |
| 主要材料 | Modular | 连接器 - 电缆 | plug |
| 触点数 | :8 | 接触件端接 | :IDC / IDT |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
| 中心导体直径 | 0.035to0.039in. | 每排/每行位置数 | 8C |
| 第一连接器安装特征 | 8p8c | ||
产品信息
| SPG | 100 | 类型 | Modular Plug |
| 连接器性别 | PL | 系列 | :- |
| 产品特性 | Shielded | USOC 编码 | RJ45 |
| 性能 | Cat5 | 规格说明 | RJ45 |
| 端口数 | 1 | 单元数量 | 1 |
| 性能类别 | Cat 5 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | ||
文档与媒体
相关型号
569875-6
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Yellow Unspecified Tools & Accessories BOOT, HOODED, 0.210 YELLOW Cable Boots BOOT, HOODED, 0.210 YELLOW Modular Plugs and Accessories CONN ACCY BOOT HOODED YELLOW Cable boot,cat3/5/5e modular plug,yellow Terminal Block Tools & Accessories BOOT, HOODED, 0.210 YELLOW Connector Accessories Modular Plugs Snagless Boot Yellow Product Highlights:BootBoot Type = SnaglessBoot Color = YellowSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Yellow;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot RJ45
1-569875-0
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Gray Modular Plugs and Accessories CONN ACCY BOOT HOODED GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT GRAY Connector Accessories Modular Plugs Snagless Boot Gray Product Highlights:BootBoot Type = SnaglessBoot Color = GraySearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN
569875-1
te connectivity / amp

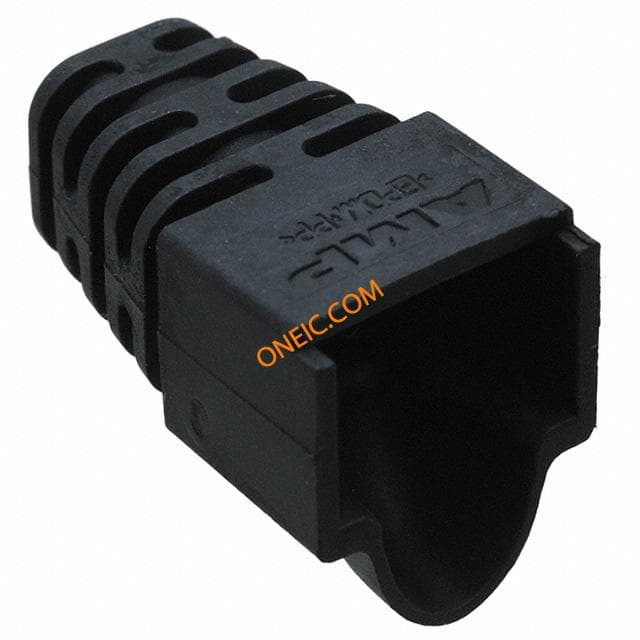

Connector Accessories Modular Plugs Snagless Boot Black Modular Plugs and Accessories CONN ACCY BOOT HOODED BLACK Cable boot, cat3/5/5e modular plug,black Cable Boots MOD PLUG BOOT Connector Accessories Modular Plugs Snagless Boot Black Product Highlights:BootBoot Type = SnaglessBoot Color = BlackSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, 8WAY CableBoot;Snagless;Black;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot
569875-5
te connectivity / amp

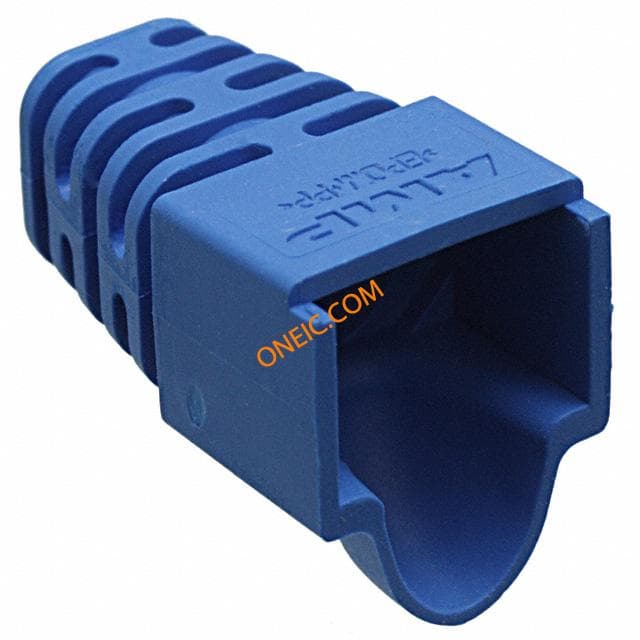

Connector Accessories Modular Plugs Snagless Boot Blue Modular Plugs and Accessories CONN ACCY BOOT HOODED BLUE Cable boot, cat3/5/5e modular plug, blue Cable Boots BLUE BOOT Connector Accessories Modular Plugs Snagless Boot Blue Product Highlights:BootBoot Type = SnaglessBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Blue;0.21in.;RoHSCompliant,ELVCompliant 5.33 mm Cable Diameter Blue Snagless Boot
569875-3
te connectivity / amp

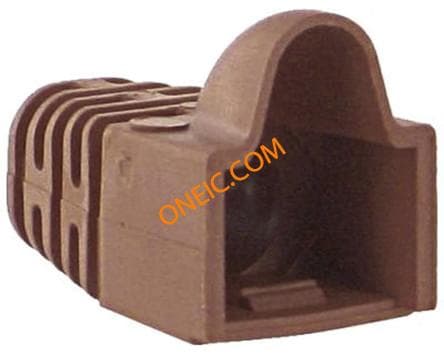

Connector Accessories Modular Plugs Snagless Boot Red Modular Plugs and Accessories CONN ACCY BOOT HOODED RED Cable boot, cat3/5/5e modular plug, red Cable Boots RED BOOT Connector Accessories Modular Plugs Snagless Boot Red Product Highlights:BootBoot Type = SnaglessBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Red;0.21in.;RoHSCompliant,ELVCompliant
558527-1
te connectivity / amp

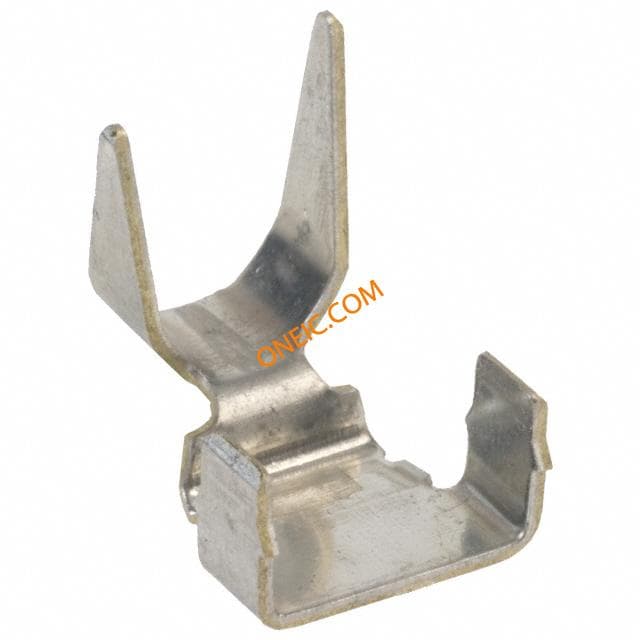

Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS
