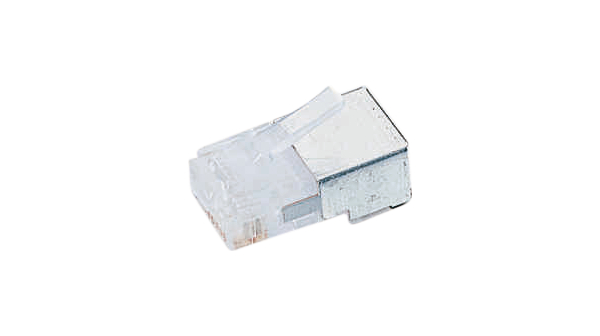

5-569532-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors 8P/8C PLUG Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, SHIELDED, RJ45, F/WIRED CABLE Plug; RJ45; PIN:8; Cat:5; gold plated; Pin layout:8p8c; 5.08mm Modular UTP Plug RJ45 Modular plug 8, 5-569532-2, TE Connectivity |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 以太网 | Cat 5 | 额定电压 | 150 V |
| 工作电压 | :150VAC | 击穿电压 | :1000VAC |
| 最大额定电流 | 1.5 A | 绝缘电阻 | :500Mohm |
| 连接器类型 - 电压输入 | :Cat3 | ||
机械参数
| 颜色 | Translucent - Clear | 深度 | 23.25 mm |
| 间距 | 1.02 mm | 高度 | 11.19 mm |
| 长度 | 0.915" (23.24mm) | 重量 | 0.002 |
| 材料（通用） | :Polycarbonate. | 包装方式 | Bulk |
| 屏蔽 | Shielded | 电缆类型 | Round Cable, Stranded Wires |
| 导线线规 | 24-28 AWG | 端接方式 | Crimp |
| 外壳颜色 | Clear | 安装类型 | Cable Mount |
| 电缆直径 | 5.08mm | 连接器类型 | :RJ45 |
| 接触镀层 | Gold | 安装样式 | Cable |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 11.79 mm |
| 包装数量 | 1 | 连接器 - 电缆 | plug |
| 端接样式 | Through Hole | 连接器颜色 | :Black |
| 触点数 | 8 | 接触件端接 | :IDC / IDT |
| 位数 | :8 | 接触镀层厚度 | 50µin (1.27µm) |
| 触点材料 - 镀层 | gold plated | 第一连接器安装特征 | 8p8c |
| 外径-未扩张 | :0.99mm | ||
产品信息
| SPG | 1 | 类型 | Modular Plug |
| 连接器性别 | PL | 系列 | Round Cable |
| 类别编号 | Cat 3 | 端口数 | 1 |
| 单元数量 | 1 | 射频系列/标准 | 569532 |
| 性能类别 | Cat 3 | 加载位置数 | 8 |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5 | 机械寿命 | :750 mating cycles |
| 工作温度 | - 40 C to + 60 C | ||
文档与媒体
相关型号
1-569875-0
