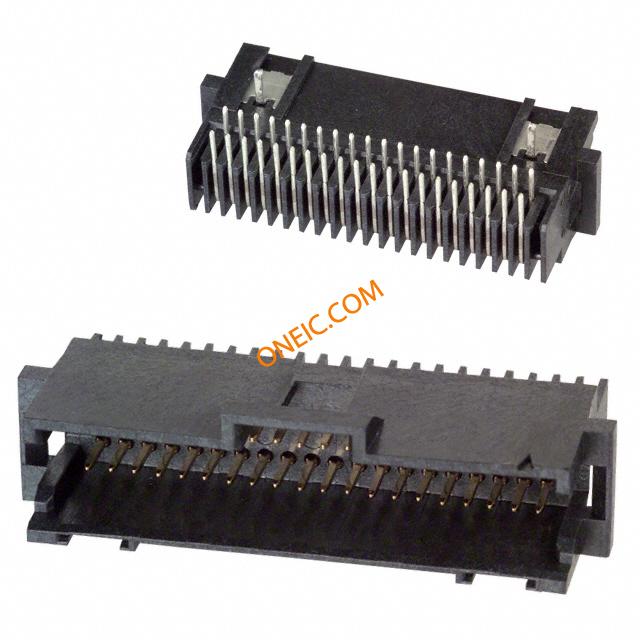

5-104069-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 40POS .050" R/A GOLD Header 40 way AmpModu system 50 Headers & Wire Housings 40 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, R/A, 40WAY, TH 40sys50hdrdrrashrdsn TE Connectivity AMPMODU System 50 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 40 sys 50 hdr drra shrd sn |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 16 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 500 V | 供电电压 | 30 |
| 击穿电压 | 500 | 绝缘电阻 | 5,000 |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.72 mm |
| 间距 | 1.27 mm | 高度 | 8.89 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 引脚间距 | :1.27mm |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Thru Hole | 排数 | 2 |
| 高度（英寸） | 0.350" (8.89mm) | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 31.75 mm |
| 包装数量 | Tube | 端接样式 | Through Hole |
| 触点数 | 40 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 40 | 接触长度 - 配合 | 0.125" (3.18mm) |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | Micro-Match |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 加载位置数 | All | ||
环境参数
| 温度范围 | -65 â +105 | 工作温度 | -65C to 105C |
文档与媒体
相关型号
4-487938-0
te connectivity / amp
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR
147378-4
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 40POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 40 SYS50 SMT RCP DR SHD W/O HD 40 SYS50 SMT RCP DR SHD W/O HD
104078-2
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 VERT DUAL 40 SYSTEM 50 RCPT ASSY DRST
111196-9
te connectivity / amp

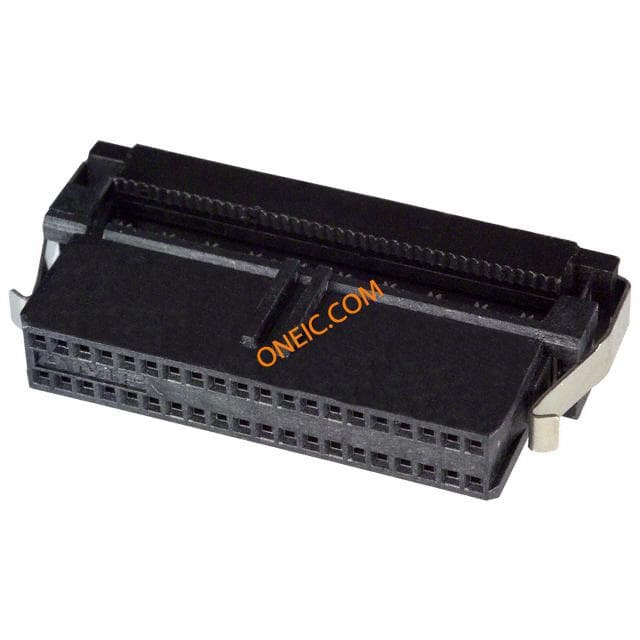

Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100 IDC Headers & Wire Housings RECPT SYSTEM 50 600 Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 RCPT SYSTEM 50 30 DPLX
5-104078-2
te connectivity / amp

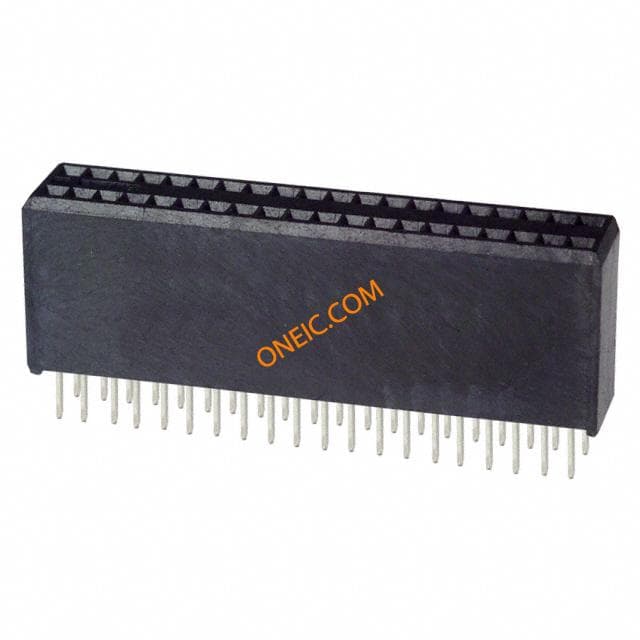

Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" STR GOLD Board to Board & Mezzanine Connectors 40 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Connector - Receptacle40 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 RCPT ASSY DRST SN
2-111196-0
te connectivity / amp
Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100" IDC Ribbon cable conn.rcpt.40 way,1.27mm,blk Headers & Wire Housings 40 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 40WAY Connectors,ribboncablereceptacle,doublerow,40position TE Connectivity AMP-LATCH System 50 系列 2行 40路 1.27mm节距 直角 电缆安装 母 IDC 连接器 40 RCPT SYSTEM 50, LEAD FREE
4-487937-0
te connectivity / amp

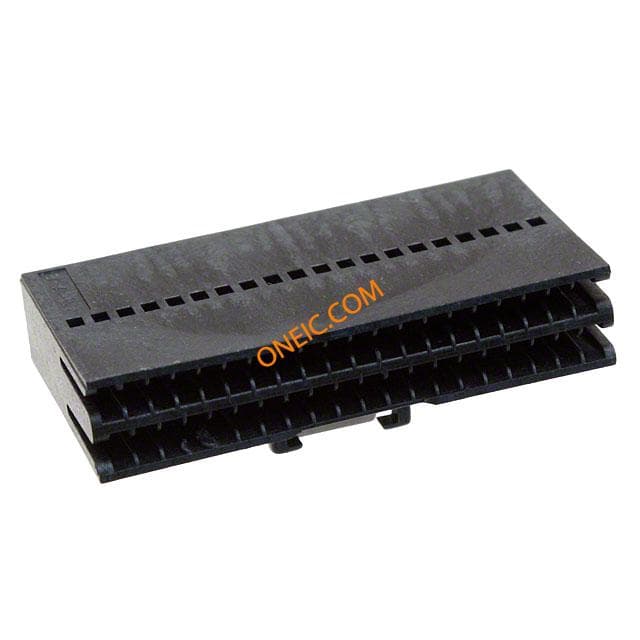

Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT VERT 40POS .050 W/LTCH FFC & FPC Connectors 040 HOUSING FFC 50CL Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR LATCH
