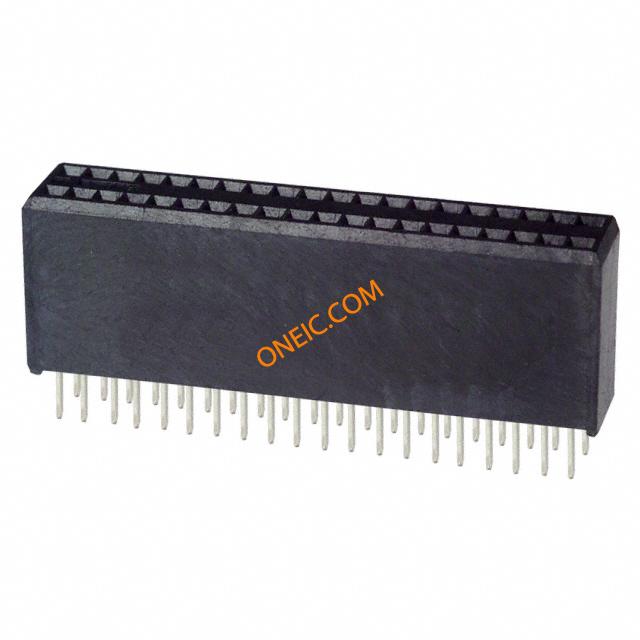

104078-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 VERT DUAL 40 SYSTEM 50 RCPT ASSY DRST |
| 分类 |
商业参数
| 其他名称 | A3218 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 30 | 输入电阻 | 5000 |
| 额定交流电压 | 30 | 击穿电压 | 500 |
| 最大额定电流 | 4 | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 高度 | 8.89 mm [ .35 in ] | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 法兰特征 | Without |
| 安装样式 | Thru Hole | 排数 | 2 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 压具柱体 |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接样式 | 插座 | 板面高度 | 0.350" (8.89mm) |
| 触点数 | 40 | 位数 | 40 |
| 兼容外壳尺寸（如TM-700等） | 插头组件 | 触头长度-柱 | 2.54 mm [ .1 in ] |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 系列 | AMPMODU | 制造商全称 | AMP |
| 产品子类型 | Receptacle Assembly | 装配配置 | Board Standoff |
| 加载位置数 | All | ||
环境参数
| 温度范围 | -65 â +105 | 工作温度 | -65 – 105 |
