147378-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD T/R .050 X .100 AMPMODU System 50 CONN RCPT 40POS DUAL SMD GOLD Board to Board & Mezzanine Connectors 40 SYS50 SMT RCP DR SHD W/O HD 40 SYS50 SMT RCP DR SHD W/O HD
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Board to Board & Mezzanine Connectors
标准包装数量	Tape & Reel

合规参数

RoHS	Contains lead / RoHS non-compliant	无铅定义	Reflow solder capable to 245Â°C, Reflow solder capable to 260Â°C
标准编号	CSA LR7189, UL E28476	RoHS/ELV合规状态	Not ELV/RoHS compliant
材料阻燃等级	UL 94V-0

电气参数

额定电压	30 V	供电电压	30
输入电阻	5000	额定交流电压	30
连接器阻抗	不带	击穿电压	500
绝缘电阻	5,000

机械参数

颜色	Black	间距	1.27 mm
高度	9.398 mm [ .37 in ]	包装方式	Tape & Reel (TR)
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	外壳颜色	Black
安装类型	Vertical	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Surface Mount
排数	2	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Thermoplastic Glass Reinforced
包装数量	Tape & Reel	面板安装类型	表面贴装
端接样式	SMD	板面高度	0.370" (9.40mm)
触点数	40	位数	40
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	RCP
系列	AMPMODU SYSTEM 50	制造商全称	AMP
产品子类型	Receptacle Assembly	装配配置	无
加载位置数	All

环境参数

温度范围

-65 â +105

工作温度

-65 – 125

文档与媒体

在线文档

147378-4?RQPN=147378-4

相关型号

104549-6

te connectivity / amp

Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD

¥26.1800

详情

5-104069-6

te connectivity / amp

Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 40POS .050" R/A GOLD Header 40 way AmpModu system 50 Headers & Wire Housings 40 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, R/A, 40WAY, TH 40sys50hdrdrrashrdsn TE Connectivity AMPMODU System 50 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 40 sys 50 hdr drra shrd sn

¥28.8320

详情

104069-6

te connectivity / amp

Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 40POS AU Headers & Wire Housings 40 SYS 50 DRRA SHRD 480 Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRRA SHRD

¥31.7560

详情

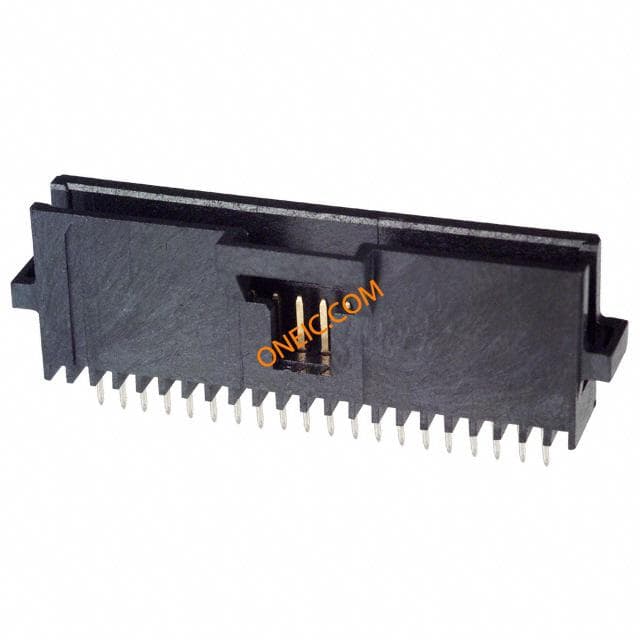

5-104068-4
