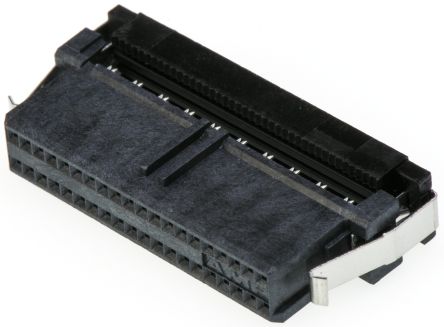

2-111196-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100" IDC Ribbon cable conn.rcpt.40 way,1.27mm,blk Headers & Wire Housings 40 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 40WAY Connectors,ribboncablereceptacle,doublerow,40position TE Connectivity AMP-LATCH System 50 系列 2行 40路 1.27mm节距 直角 电缆安装 母 IDC 连接器 40 RCPT SYSTEM 50, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU System 50 Series | 额定电压 | 30 V ac |
| 开关功能 | Latch | 接触电阻 | 30 mohm |
| 最大额定电流 | 0.5A | 绝缘电阻 | 5000 MOhms |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 6.45 mm |
| 间距 | 1.27 mm | 高度 | 14.73 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Straight |
| 导线线规 | 30-32 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 32 mm | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 插针孔直径 | 0.05" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP | 产品特性 | Feed Through |
| 硬件配件 | Latch | 制造商全称 | AMPMODU |
| 产品子类型 | Receptacles / Sockets - Housings | 应用细节 | Commercial |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
104549-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS AU Headers & Wire Housings 40 SY50 SURFMNT DRST 576 Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYS50 SURFMNT HDR DRST SHRD
5-104069-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 40POS .050" R/A GOLD Header 40 way AmpModu system 50 Headers & Wire Housings 40 POS HDR R/A DUAL ROW Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, R/A, 40WAY, TH 40sys50hdrdrrashrdsn TE Connectivity AMPMODU System 50 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 40 sys 50 hdr drra shrd sn
104069-6
te connectivity / amp
Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 40POS AU Headers & Wire Housings 40 SYS 50 DRRA SHRD 480 Conn Shrouded Header HDR 40 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRRA SHRD
5-104068-4
te connectivity / amp

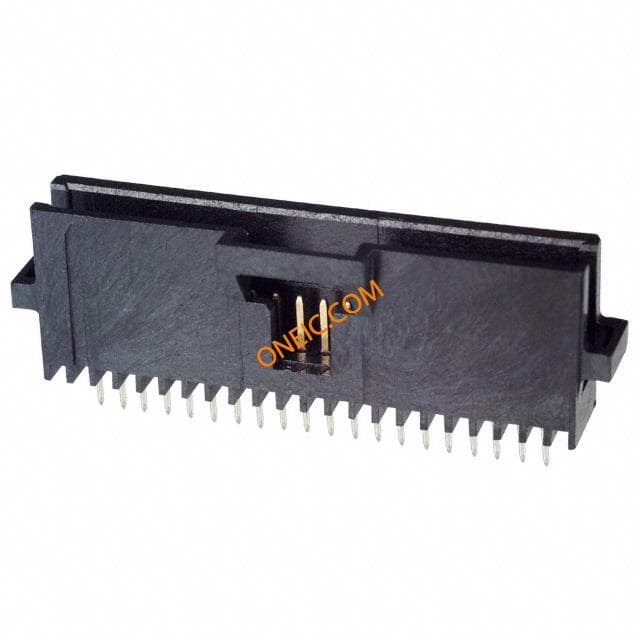

Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 40POS 30AU TE Connectivity AMPMODU Series 1.27mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings 40 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 40Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 2.54mm,Header,shrd,vert,DR,40W,Modu50,Au TE Connectivity AMPMODU System 50 系列 1.27mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 40 SYSTEM 50 HDR DRST SHRD
