5-147377-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD T/R Headers & Wire Housings 40 SYS50 SMT HDR DR SHD SN .050 X .100 AMPMODU System 50 CONN HEADER 40POS DUAL SMD GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 40 POS 1.27mm Solder ST SMD T/R Product Highlights:Connector Type = Header - Pin40 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADERVERTSMT40W2ROW TE Connectivity AMPMODU System 50 系列 1.27mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 40 SYS50 SMT HDR DR SHD SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A105475CT |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 带有 |
| 击穿电压 | 500 | 最大额定电流 | 1 |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
| 保护额定电压（VPR） | 500 V | ||
机械参数
| 颜色 | Black | 深度 | 8.74 mm |
| 间距 | 1.27 mm | 高度 | 11.05 mm |
| 底座类型 | 带有 | 包装方式 | Tape & Reel (TR) |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形 | 轴径尺寸 | .022 |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | SMD/SMT |
| 排数 | 2 | 高度（英寸） | 0.435" (11.05mm) |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 总长度 | 31.6 mm |
| 包装数量 | Tape & Reel | 面板安装类型 | 表面贴装 |
| 端接排数 | 焊接 | 插针孔直径 | .031 |
| 连接器间距 | .1 | 端接样式 | SMD |
| 触点数 | 40 | 端接表面处理 | 带罩 |
| 位数 | 40 | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.125" (3.18mm) | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 150 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU System 50 | 覆盖范围 | 覆盖 |
| 钥匙类型 | 是 | 制造商全称 | AMP |
| 产品子类型 | Headers - Shrouded | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 机械寿命 | New At Mouser |
| 温度范围 | -65 â +105 | 工作温度 | -65C to 105C |
文档与媒体
相关型号
4-487938-0
te connectivity / amp
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR

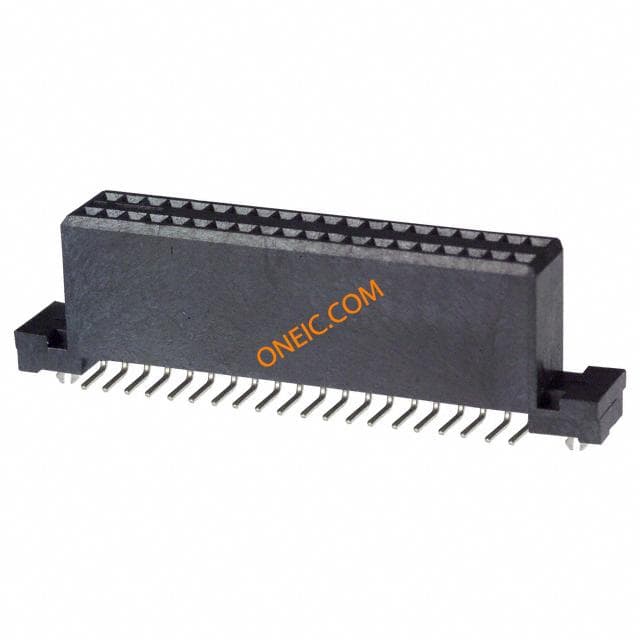

5-104550-5
