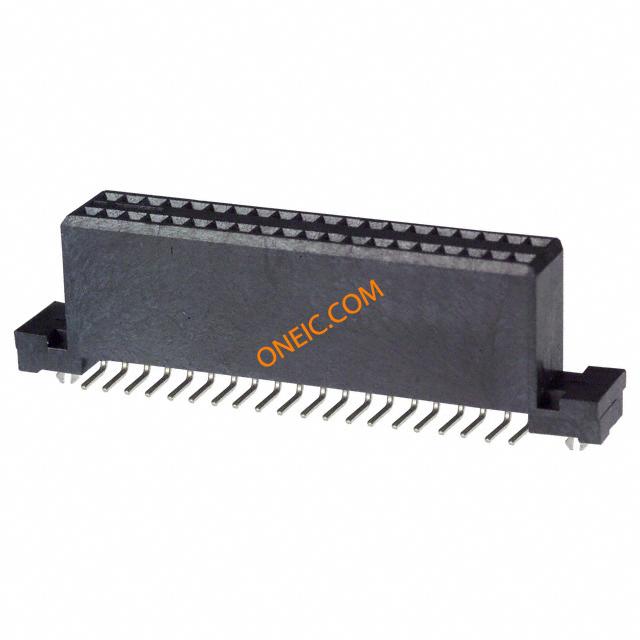

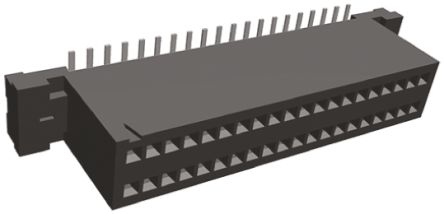

5-104550-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" GOLD SMD TE Connectivity 0.5in 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 40 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 40WAY, 2ROW ReceptacleVerticlesmt40wayAmpModu TE Connectivity AMPMODU System 50 系列 2行 40路 直 12.7mm节距 表面贴装 印刷电路板插座, 板对板 40 SYS50 SURFMNT DRST RCPT SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 16 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 V ac | 供电电压 | 30 |
| 击穿电压 | 500 | 绝缘电阻 | 5,000 |
| 最小供电电压 | 30VAC | ||
机械参数
| 颜色 | Black | 深度 | 5.02 mm |
| 间距 | 1.27 mm | 高度 | 9.47 mm |
| 重量 | 0.002 | 镀层 | Tin |
| 包装方式 | Tube | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 刀片材料 | Copper Alloy |
| 包装数量 | Tube | 端接样式 | SMD |
| 板面高度 | 0.370" (9.40mm) | 触点数 | 40 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | 堆叠高度（配合） | 0.470", 0.515" (11.94mm, 13.08mm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 系列 | AMPMODU SYSTEM 50 | 产品特性 | Board Lock |
| 制造商全称 | AMP | 产品子类型 | Receptacle Assembly |
| 加载位置数 | All | ||
