5-104666-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Headers & Wire Housings 40SYSTEM 50 HDR DRST SHRD SN .050 X .100 AMPMODU System 50 CONN HEADER 40POS DUAL T/H GOLD Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Header - Pin40 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRST SHRD SN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 16 |
合规参数
| RoHS | RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 VAC | 供电电压 | 30 |
| 额定交流电压 | 30 | 连接器阻抗 | 制动器闭锁 |
| 击穿电压 | 500 | 最大额定电流 | 1 |
| 绝缘电阻 | 5,000 | 保护额定电压（VPR） | 500 V |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 底座类型 | 不带 | 包装方式 | Tube |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 引脚样式 | 圆形 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | 2- 面 |
| 高度（英寸） | 0.390" (9.91mm) | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | Tube | 面板安装类型 | 通孔 |
| 端接样式 | Through Hole | 外径 | .381 mm [ .015 in ] |
| 触点数 | 40 | 端接表面处理 | 带罩 |
| 位数 | 40 | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.125" (3.18mm) | 端子柱长度 | 3.68 [0.145] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 150 – 250 | ||
产品信息
| 备注 | **Circuit identification feature omitted on 10 and 12 position headers. | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU System 50 |
| 钥匙类型 | 否 | 制造商全称 | AMP |
| 产品子类型 | Headers - Shrouded | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度范围 | -65 â +105 |
| 工作温度 | -65 – 105 | ||
文档与媒体
相关型号
4-487938-0
te connectivity / amp
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR

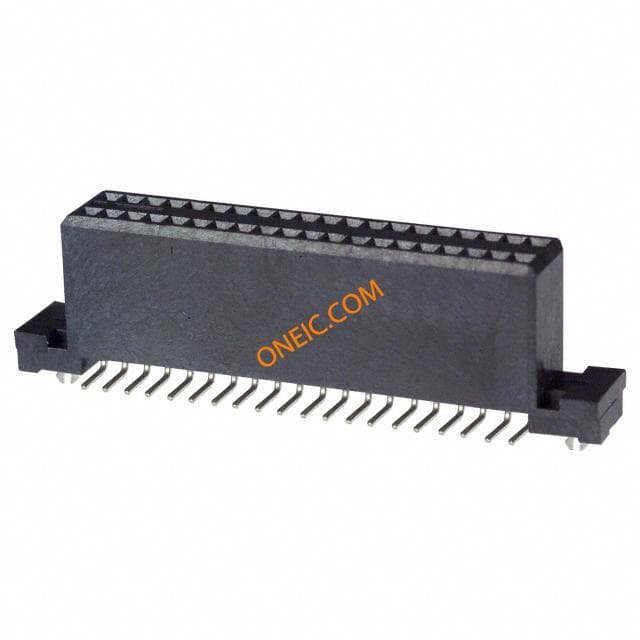

5-104550-5
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" GOLD SMD TE Connectivity 0.5in 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 40 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 40WAY, 2ROW ReceptacleVerticlesmt40wayAmpModu TE Connectivity AMPMODU System 50 系列 2行 40路 直 12.7mm节距 表面贴装 印刷电路板插座, 板对板 40 SYS50 SURFMNT DRST RCPT SN

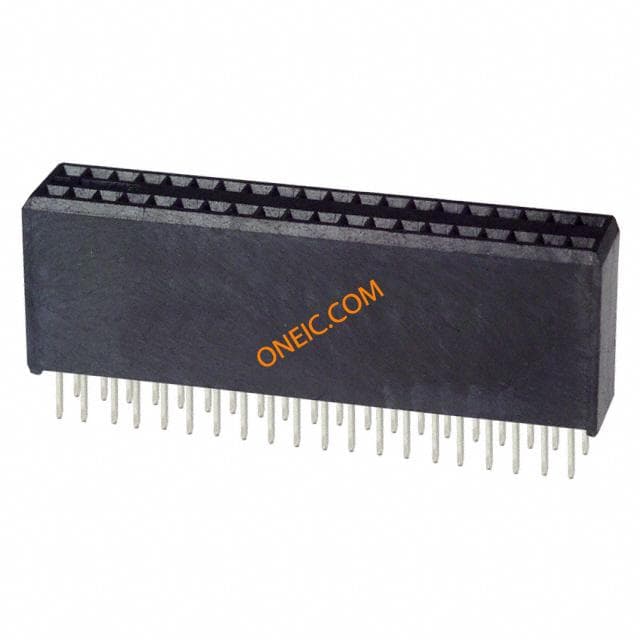

5-104078-2
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" STR GOLD Board to Board & Mezzanine Connectors 40 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Connector - Receptacle40 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 RCPT ASSY DRST SN

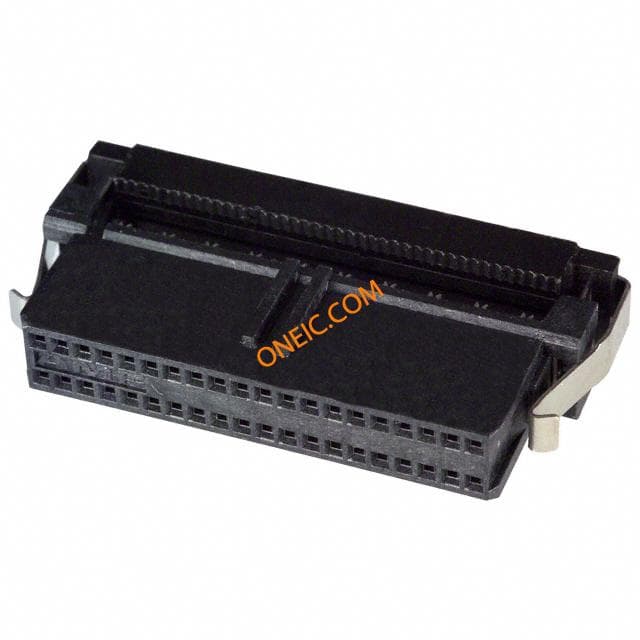

2-111196-0
te connectivity / amp
Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100" IDC Ribbon cable conn.rcpt.40 way,1.27mm,blk Headers & Wire Housings 40 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 40WAY Connectors,ribboncablereceptacle,doublerow,40position TE Connectivity AMP-LATCH System 50 系列 2行 40路 1.27mm节距 直角 电缆安装 母 IDC 连接器 40 RCPT SYSTEM 50, LEAD FREE

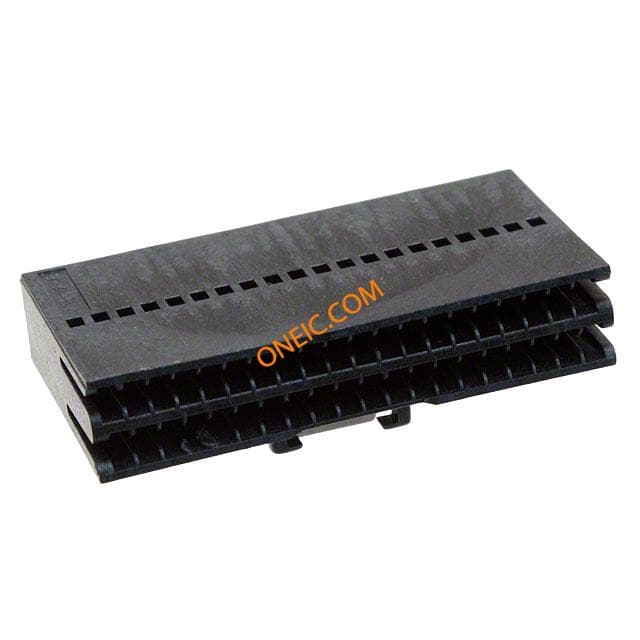

4-487937-0
