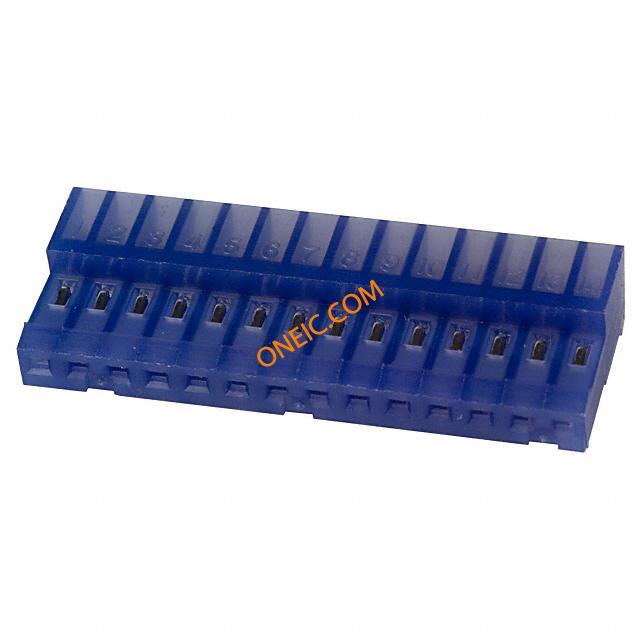

4-640442-4

点击放大查看

4-640442-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 26AWG MTA100 Headers & Wire Housings REC 14P C/E 26AWG W/O TABS Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector14 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM 14P MTA100 CONN ASSY BLU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
接触电阻6 mohm额定交流电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Blue深度6.99 mm
间距2.54 mm高度13.21 mm
重量0.00001包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规26 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Blue
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Tin Over Nickel紧固类型Locking Ramp
安装样式Wire排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon总长度35.56 mm
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数14
接触件端接:IDC / IDT位数14
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
4-640442-4?RQPN=4-640442-4
