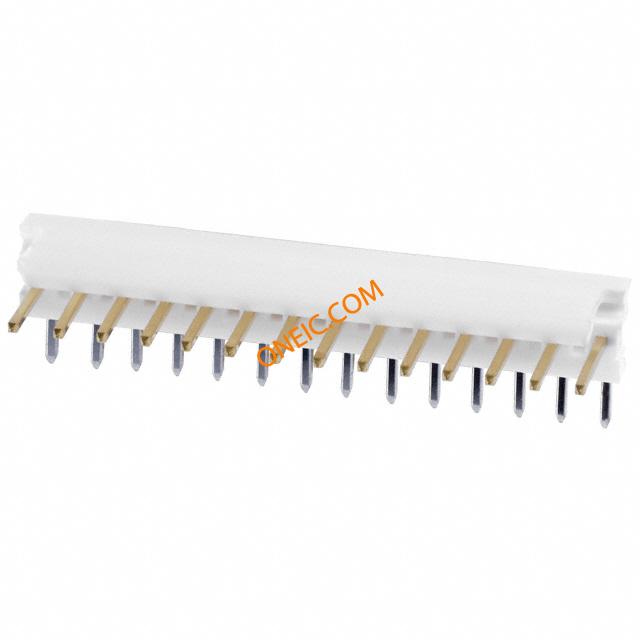

1-641214-4

点击放大查看

1-641214-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 14 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 14POS .100 30AU Headers & Wire Housings POLARIZED HEADER 14P R.A. Post gold 14P MTA100 HDR ASSY PO/RA 30AU 14P MTA100 HDR ASSY PO/RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A24928标准包装规格1
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Not suitable for lead free processing
RoHS/ELV合规状态Not ELV/RoHS compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V额定交流电压250
最大额定电流5 A

机械参数

颜色Natural间距2.54 mm
包装方式Bulk遮蔽类型No
端接方式Solder触头类型Male Pin
第二连接器Without触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Gold Over Nickel
排数1连接器用途Header
触头材料Copper Alloy壳体材料Polyester
安装特性Without面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向With
触点数14位数14
后壳中断功能Without典型触点布局2.54 [0.100]
接触长度 - 配合0.295" (7.49mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度30µin (0.76µm)
恢复后小径No

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100产品特性Polarizing Key
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

文档与媒体

在线文档
1-641214-4
