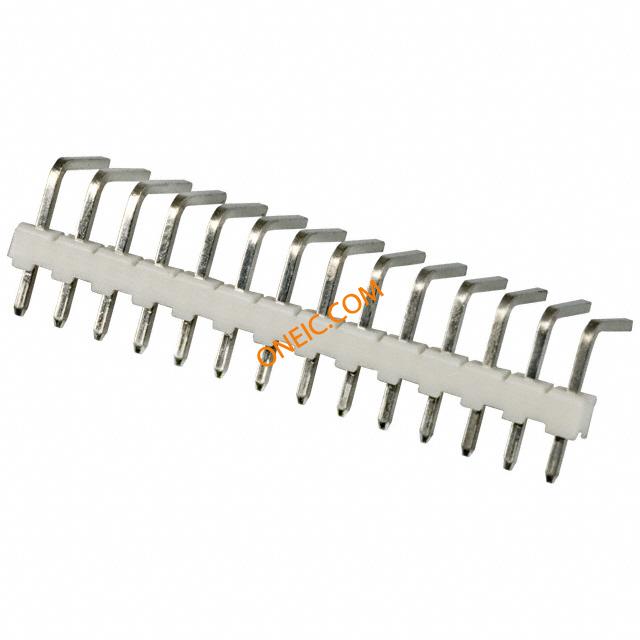

1-644694-4

制造商	TE Connectivity Ltd.
描述	Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings NARROW FLT HDR 14P R.A. Post w/ret. Leg CONN HEADER RT/A 14POS .100 TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	A19422	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	250

合规参数

RoHS

材料阻燃等级

UL 94 V-0

电气参数

额定电压

250 V

机械参数

颜色	Natural	间距	2.54 mm
包装方式	Bulk	端接方式	Solder
触头类型	Male Pin	安装类型	Right
连接器类型	Header, Unshrouded	接触镀层	Tin-Lead
安装样式	PCB	排数	1
触头材料	Copper Alloy	壳体材料	Polyester
端接样式	Solder Pin	第一触头极性	Pin (Male)
触点数	14	位数	14
接触长度 - 配合	0.260" (6.60mm)	接触镀层厚度	150µin (3.81µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	MTA-100	功能	2 or 3 retentive legs per header, depending upon number of positions
产品子类型	Headers - Unshrouded	应用细节	Wire-to-Board
加载位置数	All

环境参数

机械寿命

Obsolete

文档与媒体

在线文档

1-644694-4

相关型号

4-643816-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Assembly14 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY POL RIB

¥6.5960

详情

1-640443-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100 Headers & Wire Housings 14P ASSY GRN Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY GRN

¥8.5680

详情

4-641242-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 24AWG MTA100 Headers & Wire Housings 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL 14P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥15.4360

详情

1-640623-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 28AWG MTA100

详情

1-641191-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 GOLD

详情

1-644540-4

te connectivity / amp

Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 14POS .100 22AWG POLAR Headers & Wire Housings 14P MTA100 CONN ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:14 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 CONN ASSY F/T POL

¥5.5760

详情

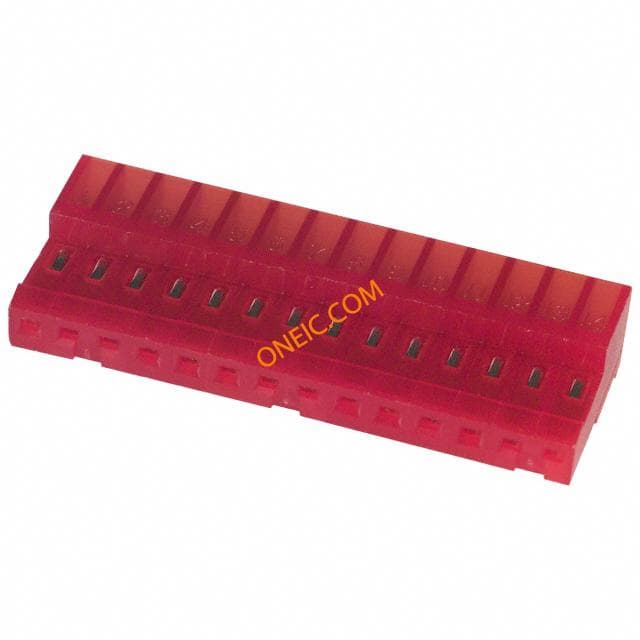

4-640440-4
