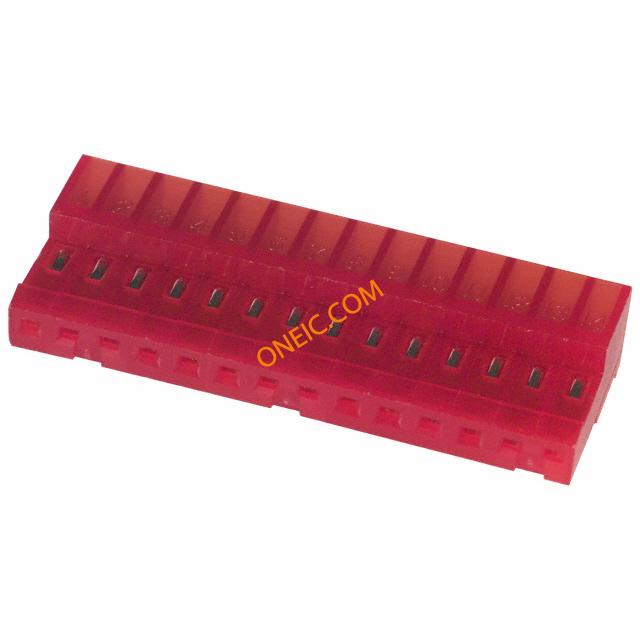

4-640440-4

点击放大查看

4-640440-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14POS 22AWG MTA100 Connector,ClosedEnd,14,0.100in.,22AWG Headers & Wire Housings MTA 100 CONN 22-14 Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 14Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 14POS, 2.54MM Connector;ClosedEnd;14;0.100in.;22AWG 14P MTA100 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构CSA,UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
接触电阻6 mohm额定交流电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Red深度6.99 mm
间距2.54 mm高度13.21 mm
重量0.003包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)行程角度Straight
连接器类型Closed End接触镀层Tin Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1连接器用途Receptacle
触头材料Copper Alloy壳体材料Nylon
总长度35.56 mm安装特性Without
包装数量Loose Piece面板安装类型Without
主要材料InterconnectSystem电缆端接方式IDC
插针孔直径0.1"端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数14接触件端接:IDC / IDT
绝缘直径0.05"(Wire)位数14
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.3-0.4² [22]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度+105°C
