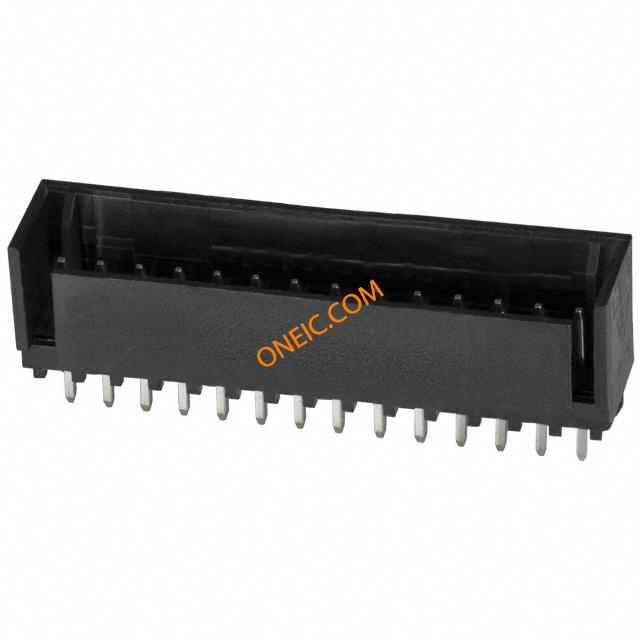

3-644486-4

点击放大查看

3-644486-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 14POS .100 TIN Headers & Wire Housings SHROUDED HEADER 14P Straight Post tin Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 14P MTA100 SHRDED HDR ASSY SN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Black间距2.54 mm
高度10.41 mm [ .41 in ]长度37.69 mm [ 1.484 in ]
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端接方式Solder
触头类型Male Pin极化Polarized Retention Peg
第二连接器With触点形状Square
外壳颜色White安装类型Vertical
连接器类型Header, Shrouded接触镀层Matte Tin
触点时序Without紧固类型Friction Lock
安装样式带有排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量500
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数14
端接表面处理不带位数14
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.56 mm [ .14 in ]安装孔直径带有
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.200" (5.08mm)触点材料 - 柱Copper Alloy
端子柱长度3.56 [0.140]接触镀层厚度3.81 – 6.3 µm [ 150 – 250 µin ]
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Shrouded Header连接器性别HDR
系列MTA-100产品特性Board Guide
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
