353908-5
| 制造商 | TE Connectivity Ltd. |

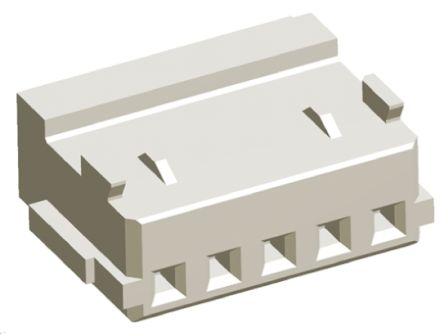

| 描述 | Conn Housing RCP 5 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 5POS 1.5MM CRIMP Receptacle housing, 1.5mm,5 way,Mini-CT Headers & Wire Housings RCPT 5 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 5 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 5Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,5POSITION,1.5MMPITCH,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 5 路 直 母 PCB 壳体 CT REC HSG 5P CRIMP TYPE WHITE |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A98656 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189-133 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 50 VAC, 50 VDC | 输入电阻 | 500 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
机械参数
| 颜色 | White | 深度 | 6mm |
| 间距 | 1.5 mm | 形状 | 矩形 |
| 宽度 | 3.6mm | 高度 | 6 mm [ .236 in ] |
| 长度 | 9mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 24-28 AWG |
| 方向 | 直 | 端接方式 | Crimp |
| 触头类型 | Female Socket | 第二连接器 | Without |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 1.50 [0.059] | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 插针孔直径 | 0.059" | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 接触件端接 | Crimp | 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] |
| 位数 | 5 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 353908 |
| 产品特性 | TypeII | 可密封 | 否 |
| 制造商全称 | MiniCTSeries | 产品子类型 | Receptacle Housing |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
相关型号
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
292207-5
te connectivity / amp

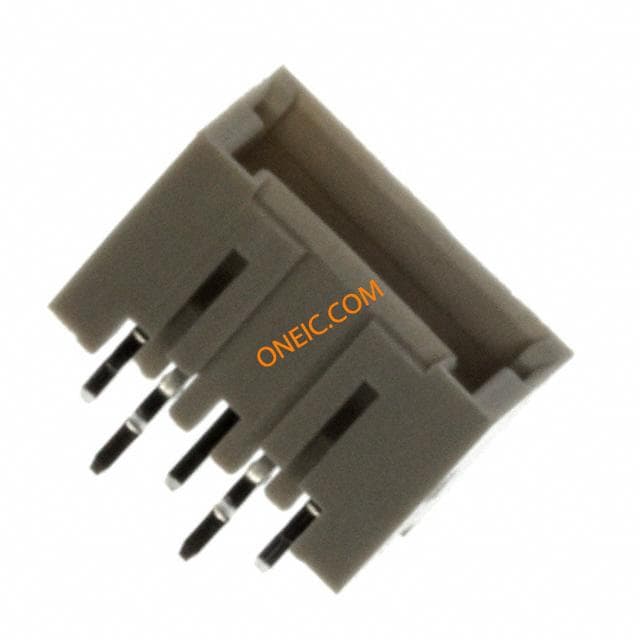

Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 5POS VERT 1.5MM TIN Headers & Wire Housings 5P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM POSTHEADERASSEMBLY,5POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE MINI CT SGL DIP V 5P NAT
292228-5
te connectivity / amp

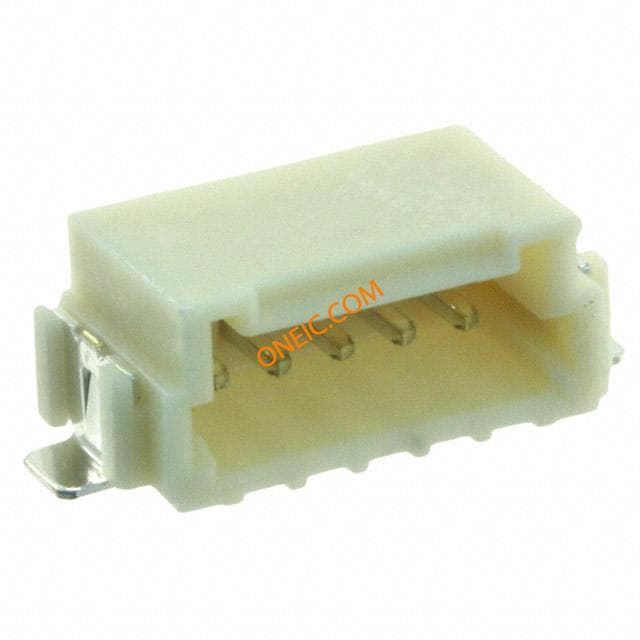

Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 5POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM 1.5 MINI CT SGL H SMT W/O BOSS
2106091-4
te connectivity / amp

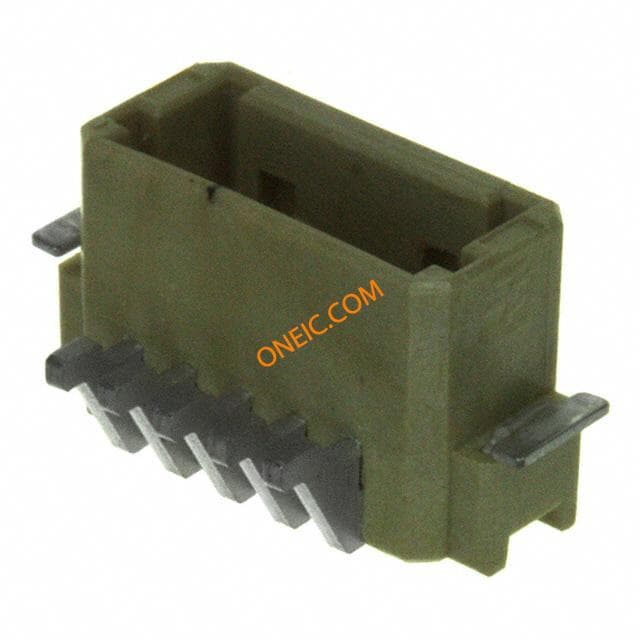

Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 5POS T/H SMD 1.5MM Lighting Connectors 5P INVERTED SMT THRU BOARD Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 5WAY INVERTED,SMT,MINICT,4W 5 pos Inverted Thru Board SMT Header
292227-5
te connectivity / amp

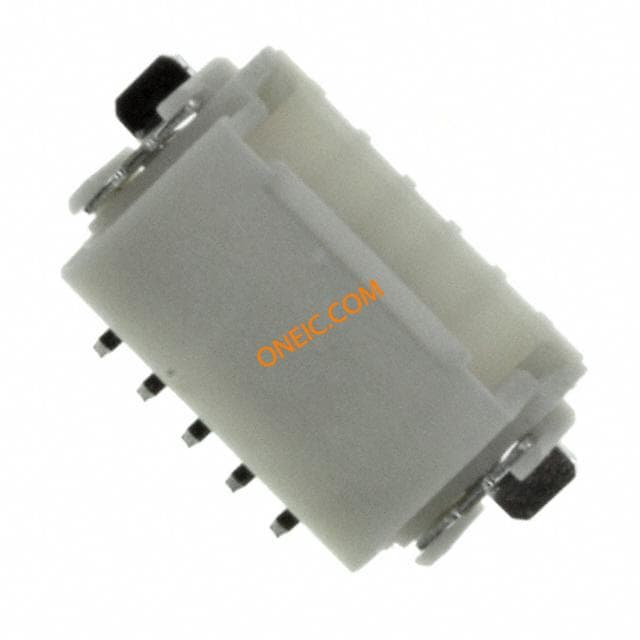

Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 5POS R/A SMD TIN TE Connectivity Mini-CT Series 1.5mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 5P SMT HDR R/A MINI 1.5mm Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Headerrightangle5wayMiniCT TE Connectivity AMP Mini CT 系列 1.5mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 1.5 MINI CT SGL H SMT W BOSS 5
292206-5
te connectivity / amp

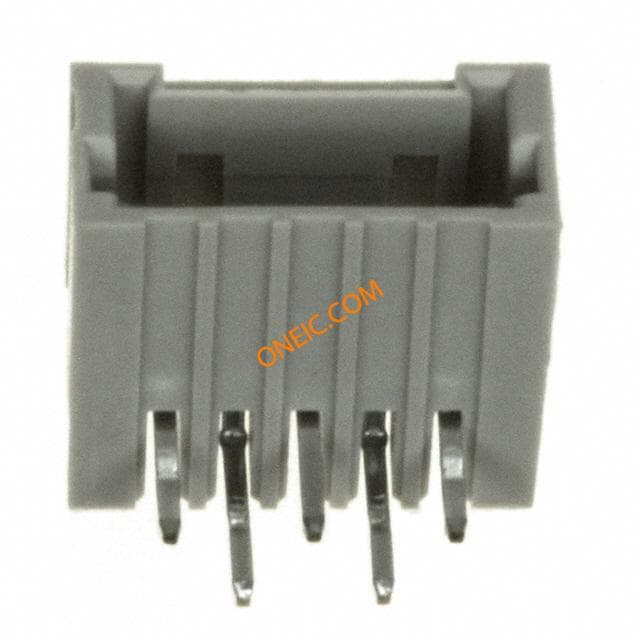

Conn Shrouded Header HDR 5 POS 1.5mm Solder RA Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 5POS R/A 1.5MM TIN Headers & Wire Housings 5P DIP HDR R/A MINI NAT 1.5mm Conn Shrouded Header HDR 5 POS 1.5mm Solder RA Thru-Hole Loose Piece Product Highlights:ConnectorWire-to-BoardApplies To Printed Circuit Board1.50 mm CenterlineHeaderSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, POSTHEADERASSEMBLY,5POSITION,HORIZONTAL,1.5MMPITCH,DIPSTANDARDTYPE MINI CT SGL DIP H 5P NAT
