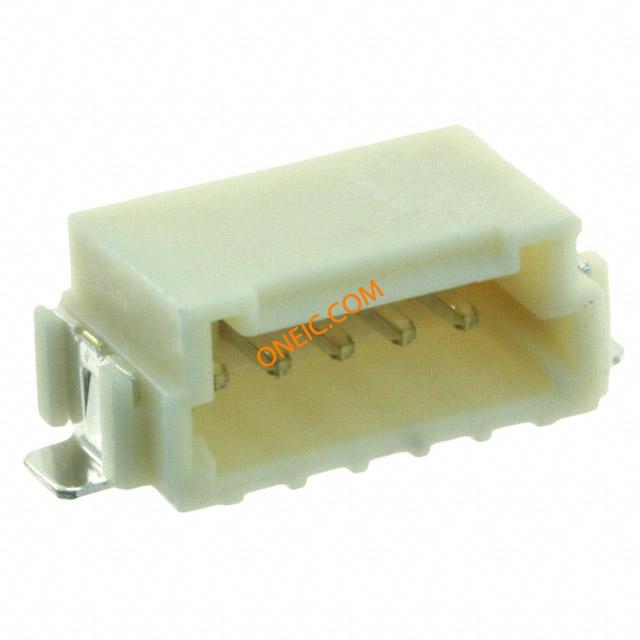

292228-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 5POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM 1.5 MINI CT SGL H SMT W/O BOSS |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 其他名称 | A101010CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Without | 接触电阻 | 30 mohm |
| 最小供电电压 | 50VDC/50VAC | ||
机械参数
| 颜色 | Beige | 深度 | 9.2 mm |

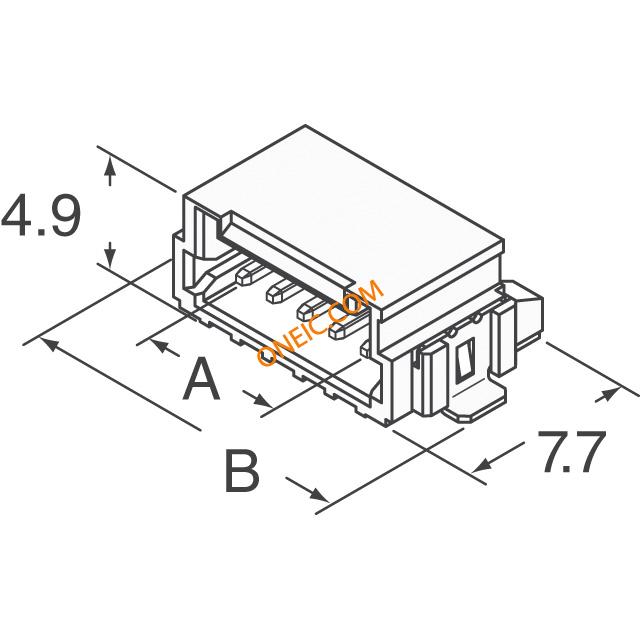

| 间距 | 1.5 mm | 高度 | 4.9 mm |
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 触点形状 | Square | 外壳颜色 | Beige |
| 安装类型 | Right Angle | 连接器类型 | DIP |
| 接触镀层 | Tin | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 12 mm |
| 包装数量 | Tape | 面板安装类型 | Without |
| 尺寸/外形 | 0.50 [.020] | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 位数 | 5 |
| 中心触点材料 | 1.50 [0.059] | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Mini CT | 产品特性 | Solder Retention |
| 产品子类型 | Post Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -30C to 105C | ||
