353293-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 5 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 5POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,5W, Mini-CT Headers & Wire Housings RCPT 5 POS GRY MINI 1.5mm Conn IDC Connector RCP 5 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 5Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,5W,Mini-CT MINI CT MT REC ASSY 5P GRAY |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 50 V ac/dc | 开关功能 | Without |
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | 2A |
机械参数
| 颜色 | Gray | 间距 | 1.5 mm |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 26-28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | No |
| 连接器类型 | MT (Mass Termination) | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon GF | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 绝缘直径 | 0.80 â 0.95 [0.032 â 0.037] |
| 位数 | 5 | 安装孔直径 | 带有 |
| 中心触点材料 | 1.50 [0.059] | 线规或范围 - mm² | 0.08-0.15² [28-26] |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | Mini CT | 产品特性 | Closed End |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Assembly |
| 连接类型 | Wire | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
937317-1
te connectivity / amp
MIMI CT PISTOL TOOL Hand Tools PISTOL GRIP MINI CT TOOL PUNCH MINI CT PISTOL GRIP MINI CT Pistol Tool
292207-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 5POS VERT 1.5MM TIN Headers & Wire Housings 5P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM POSTHEADERASSEMBLY,5POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE MINI CT SGL DIP V 5P NAT
292228-5
te connectivity / amp
Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 5POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS Conn Shrouded Header HDR 5 POS 1.5mm Solder RA SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM 1.5 MINI CT SGL H SMT W/O BOSS

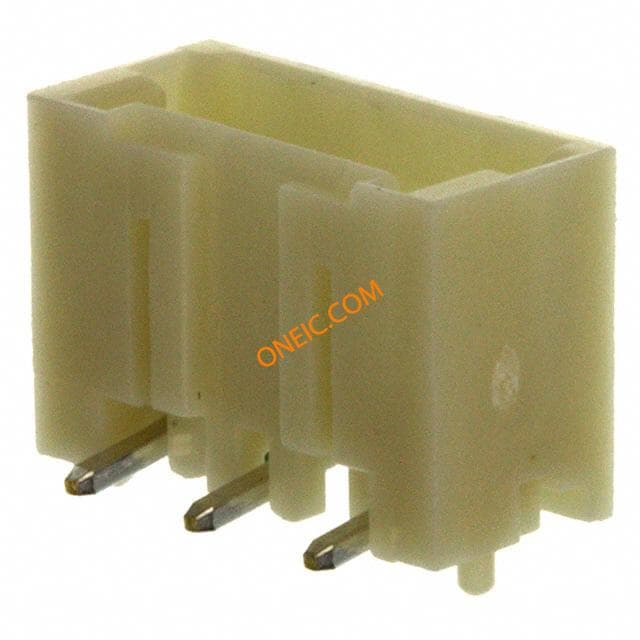

292230-5
