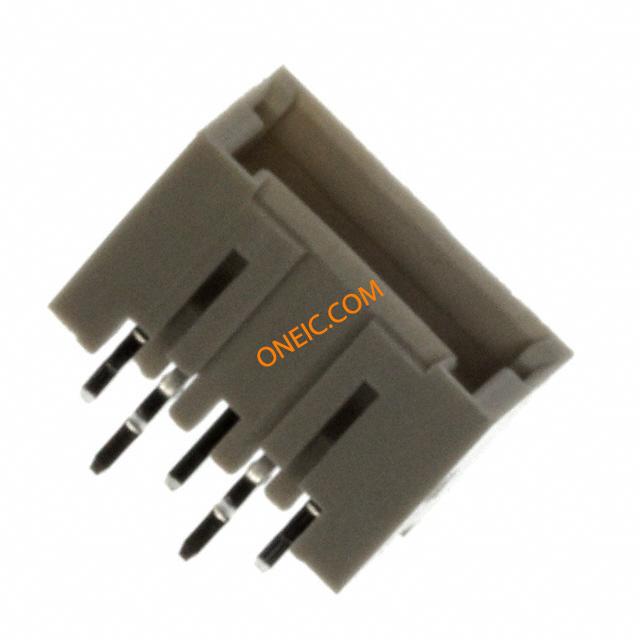

292207-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 5POS VERT 1.5MM TIN Headers & Wire Housings 5P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 5 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 5Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 5POS, 1.5MM POSTHEADERASSEMBLY,5POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE MINI CT SGL DIP V 5P NAT |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 其他名称 | A98684 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 50V | 开关功能 | With |
| 最大额定电流 | 2/Contact A | 最小供电电压 | 50VDC/50VAC |
机械参数
| 颜色 | Gray | 深度 | 4.7 mm |
| 间距 | 1.5 mm | 高度 | 6.9 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 28-26 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 3mm |
| 极化 | Mounting Boss | 触点形状 | Square |
| 外壳颜色 | Gray | 安装类型 | Vertical |
| 行程角度 | Straight | 连接器类型 | DIP |
| 接触镀层 | Pre-Tin | 安装样式 | Thru Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 10 mm |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | WiretoBoard | 尺寸/外形 | 0.50 [.020] |
| 插针孔直径 | 0.059" | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 5 |
| 接触件端接 | :Through Hole Vertical | 绝缘直径 | 0.8-0.9mm |
| 位数 | 5 | 中心触点材料 | 1.50 [0.059] |
| 接触长度 - 配合 | 0.094" (2.40mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Mini CT | 产品特性 | Board Guide |
| 制造商全称 | MiniCTSeries | 产品子类型 | Post Header |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
环境参数
| 工作温度 | -30C to 105C | ||
文档与媒体
