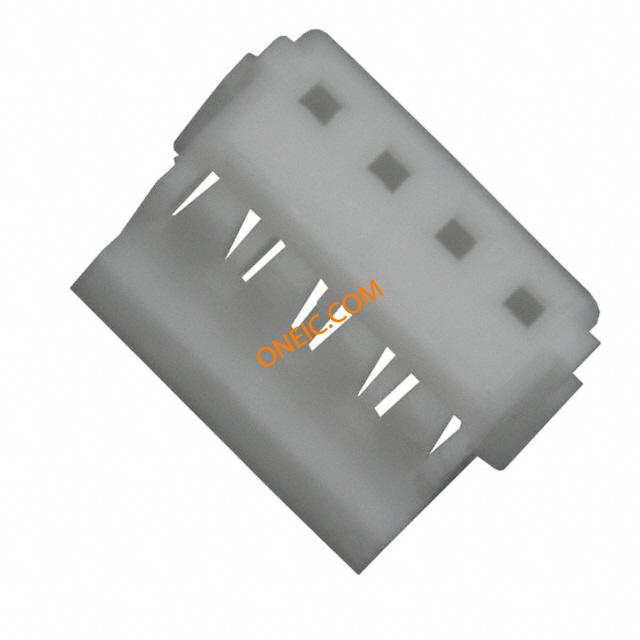

353908-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 4POS 1.5MM CRIMP Receptacle housing, 1.5mm,4 way,Mini-CT Conn Housing RCP 4 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 4Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,4POSITION,1.5MMPITCH,CRIMPTYPEII CONN RCPT HSNG 4POS 1.5MM CRIMP Datacode: 20140223、Datacode: 0310 TE Connectivity AMP Mini CT 系列 1.5mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 CT REC HSG 4P CRIMP TYPE WHITE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189-133 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 供电电压 | 50 VAC, 50 VDC |
| 输入电阻 | 500 | 连接器阻抗 | 压接 |
| 最大额定电流 | 2A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | White | 深度 | 6mm |
| 间距 | 1.5 mm | 形状 | 矩形 |
| 宽度 | 3.6mm | 高度 | 6 mm [ .236 in ] |
| 长度 | 7.5mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 24-28 AWG |
| 方向 | 直 | 端接方式 | Crimp |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 第二连接器 | Without | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 安装样式 | 不带 | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 66 |
| 总长度 | 1.50 [0.059] | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 插针孔直径 | 0.059" | 端接样式 | 插座 |
| 触点数 | 4 | 接触件端接 | Crimp |
| 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] | 位数 | 4 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP Mini CT |
| 产品特性 | TypeII | 可密封 | 否 |
| 制造商全称 | MiniCTSeries | 产品子类型 | Receptacle Housing |
| 基础产品编号 | 353908 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
相关型号
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
292227-4
te connectivity / amp

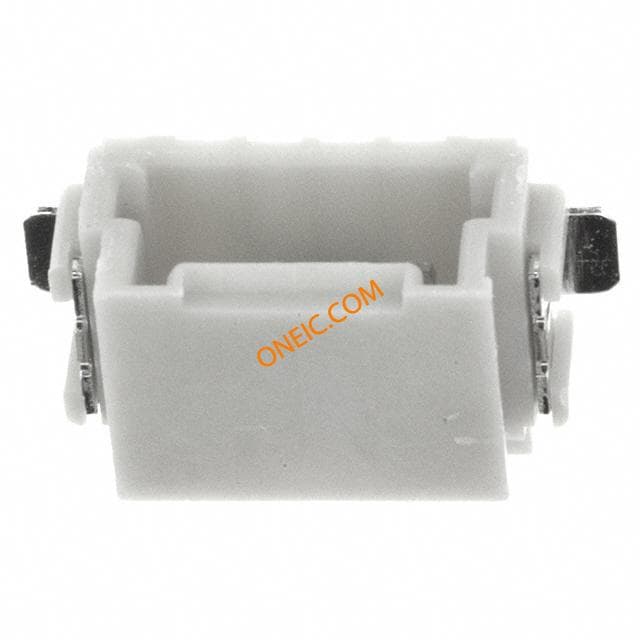

Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 4POS R/A SMD TIN Headers & Wire Housings 4P SMT HDR R/A MINI Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 1.5 MINI CT SGL H SMT W BOSS 4
292228-4
te connectivity / amp

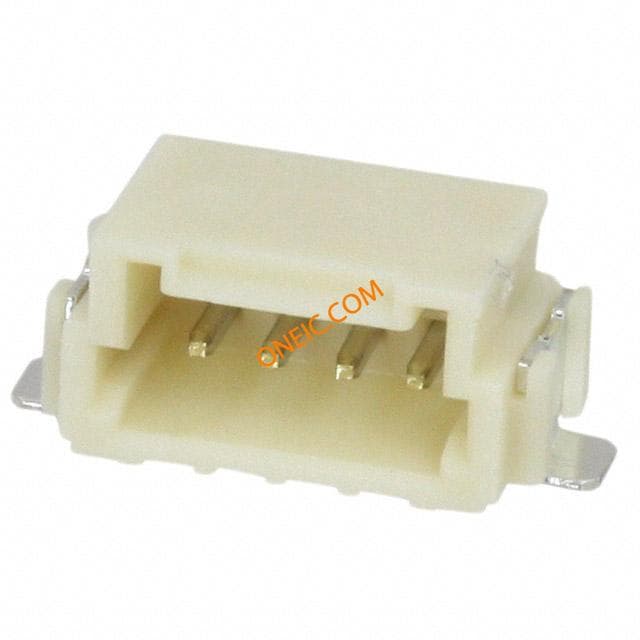

Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 4POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD T/R Product Highlights:ConnectorWire-to-BoardApplies To Printed Circuit Board1.50 mm CenterlineHeaderSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS
292207-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 4POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 4P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 4POS, 1.5MM POSTHEADERASSEMBLY,4POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 4P NAT
2106091-3
te connectivity / amp
Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 4POS T/H SMD 1.5MM Lighting Connectors 4P INVERTED SMT THRU BOARD Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD Product Highlights:Wire-to-Board1.50 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 3 AOperating Voltage = 50 VACSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 4WAY 4 pos Inverted Thru Board SMT Header
292206-4
te connectivity / amp

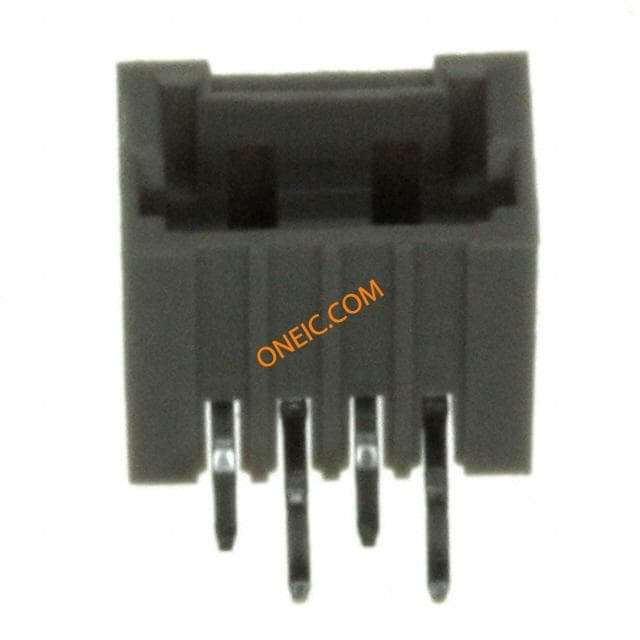

Conn Shrouded Header HDR 4 POS 1.5mm Solder RA Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 4POS R/A 1.5MM TIN TE Connectivity 292206 Series 1.5mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings 4P DIP HDR R/A MINI NAT 1.5mm Conn Shrouded Header HDR 4 POS 1.5mm Solder RA Thru-Hole Loose Piece Product Highlights:ConnectorHousing Gender = Header - Pin4 PositionsNumber of Rows = 1Without Panel AttachmentSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, POSTHEADERASSEMBLY,4POSITION,HORIZONTAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 MINI CT SGL DIP H 4P NAT
