292207-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 4POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 4P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 4POS, 1.5MM POSTHEADERASSEMBLY,4POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 4P NAT |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 1750 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 50V | 开关功能 | With |
| 最大额定电流 | 1A(28AWG),2A(24AWG) | ||
机械参数
| 颜色 | Gray | 间距 | 1.5 mm |
| 重量 | 0.00023 | 包装方式 | Bulk |
| 导线线规 | 28-26 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 3mm |
| 极化 | Mounting Boss | 触点形状 | Square |
| 安装类型 | Vertical | 行程角度 | Straight |
| 连接器类型 | DIP | 接触镀层 | Pre-Tin |
| 安装样式 | Thru Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 8.5mm | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 尺寸/外形 | 0.50 [.020] | 插针孔直径 | 0.059" |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 绝缘直径 | 0.8-0.9mm |
| 位数 | 4 | 中心触点材料 | 1.50 [0.059] |
| 接触长度 - 配合 | 0.094" (2.40mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 292207 | 产品特性 | Board Guide |
| CAD图纸 | 3D CAD Model | 制造商全称 | MiniCTSeries |
| 产品子类型 | Post Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -30to+105°C | ||
相关型号
353908-4
te connectivity / amp
Conn Housing RCP 4 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 4POS 1.5MM CRIMP Receptacle housing, 1.5mm,4 way,Mini-CT Conn Housing RCP 4 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 4Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,4POSITION,1.5MMPITCH,CRIMPTYPEII CONN RCPT HSNG 4POS 1.5MM CRIMP Datacode: 20140223、Datacode: 0310 TE Connectivity AMP Mini CT 系列 1.5mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 CT REC HSG 4P CRIMP TYPE WHITE

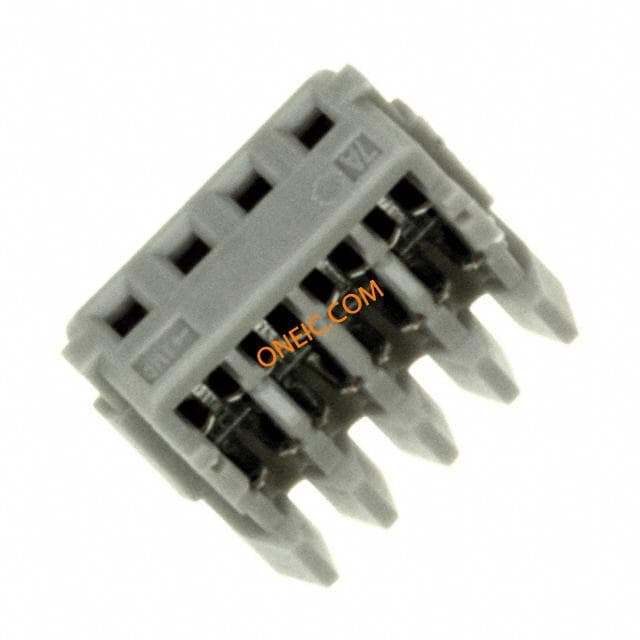

353293-4
