3-1102755-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum HTS Connectors and Accessories CONN HOOD SIDE SZ8 PG29 EMV HTS Connectors and Accessories Product Highlights:EMV SeriesAccessoryAccessory Type = HoodProduct Size = 8Dimensions (L x H x W) = 156.00 x 90.00 x 53.00 mmSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 EMV.24/64.STS.1.29. |
| 分类 |
商业参数
| 标准包装规格 | 5 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 尺寸 | 8 | 颜色 | 灰色 |
| 宽度 | 53 mm [ 2.087 in ] | 表面处理 | Silver Gray |
| 高度 | 90 mm [ 3.543 in ] | 长度 | 156 mm [ 6.142 in ] |
| 材料（通用） | Die Cast Aluminum | 锁定类型 | 护罩 |
| 包装方式 | Bulk | 螺纹尺寸 | PG29 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 连接器样式 | Side |
| 锁定特性 | Screw Lock on Hood | 壳体材料 | Aluminum, Die Cast |
| 包装数量 | Loose Piece | 尺寸/外形 | 6.142" L x 2.087" W x 3.543" H (156.00mm x 53.00mm x 90.00mm) |
| 外壳尺寸-插件 | 是 | 总体尺寸 | 156.00 x 90.00 x 53.00 [6.142 x 3.543 x 2.087] |
| AC输出连接器 | 侧 | ||
产品信息
| 备注 | Protection against electro-magnetic interference, pressure-tight | 类型 | Hood |
| 样式 | Side Entry | 系列 | EMV |
| 产品子类型 | Hood | 锁定位置 | Screw Locks on Hood |
| 附件类型 | 护罩 | 射频系列/标准 | 1102755 |
环境参数
| 液体防护 | No | 防护等级 | IP68 - Dust Tight, Waterproof |
| 耐磨防护 | 否 | 工作温度 | -40°C ~ 80°C |
相关型号

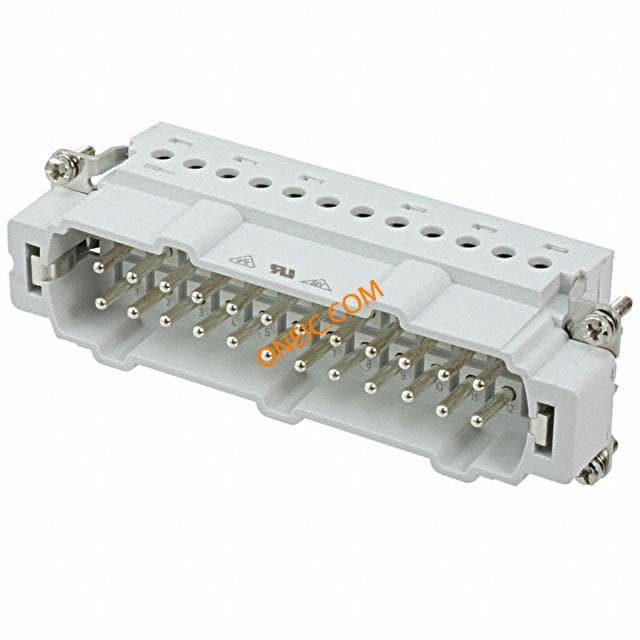

1-1103640-1
