1-1103640-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Male Insert 25 POS Screw Terminal Hard Silver Loose Piece HTS Connectors and Accessories CONN MALE INSERT HE.24 SERIES HE 24 way screw terminal male insert Heavy Duty Power Connectors PIN INSERT 24+PE HE.24 Connector Accessories Male Insert 25 POS Screw Terminal Hard Silver Loose Piece Product Highlights:HE.24 SeriesInsertProduct Size = 8Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 24WAY HE24WAYSCREWTERMINALMALE Connector: HTS; male; HTS HE; PIN:24; 24+PE; size 8; 16A; 400V TE Connectivity HE 系列 大负荷电源连接器套件 HE.24.STI.S.1-24 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 8 | 颜色 | Gray |
| 重量 | 0.14 | 材料（通用） | thermoplastic |
| 钻孔直径 | 104mm | 包装方式 | Bulk |
| 端接方式 | :Screw | 安装类型 | screw terminal |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | Straight | 排数 | :2 |
| 封装形式 | size 8 | 插入力 | Male |
| 触头材料 | Hard Silver | 壳体材料 | Polycarbonate (PC), Glass Filled |
| 包装数量 | 5 | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 8 | 端接样式 | Screw |
| 第一触头极性 | :Pin | 外径 | 110mm |
| 触点数 | 24 | 接触件端接 | :Screw |
| 横截面形状 | 0.5...2.5mm2 | 位数 | 24+Ground |
| 外壳尺寸-插件 | :8 | 小外径 | 27mm |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Panel |
| 第一连接器安装特征 | 24+PE | ||
产品信息
| SPG | 5 | 类型 | Insert |
| 连接器性别 | Male | 系列 | HE.24 |
| 制造商全称 | HTS | 产品子类型 | Inserts |
| 适配器系列 | HTS HE | 单元数量 | 1 |
| 射频系列/标准 | 1103640 | 其他规格 | 33mm |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -40°C ~ 125°C |
相关型号

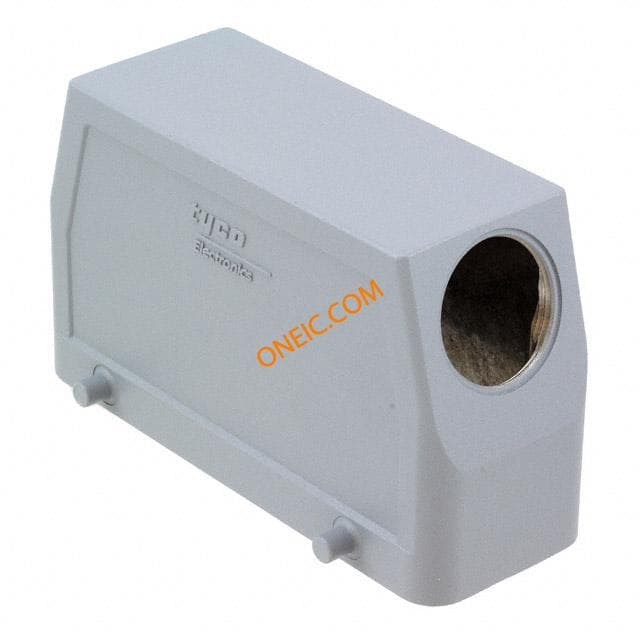

1-1102316-6
