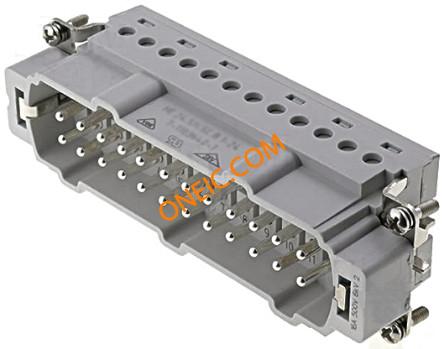

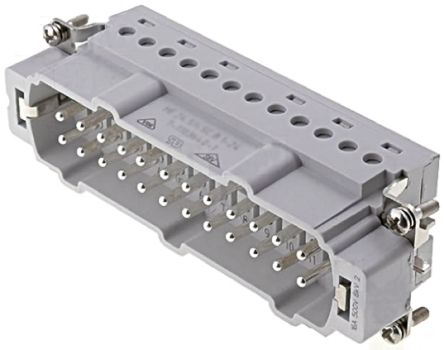

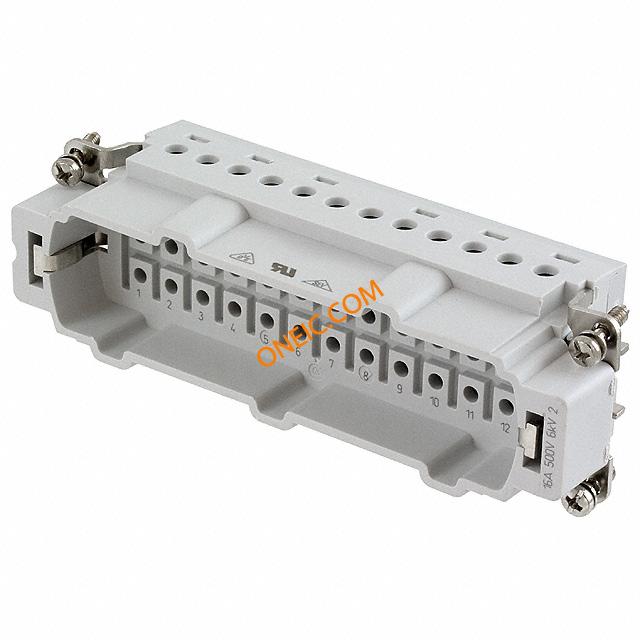

2-1103640-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN PIN INSERT 24+PE POLES HD Connector, Insert HE24 male Heavy Duty Power Connectors PIN INSERT 24+PE HE.24 SIZE 8 Conn Rectangular M 24Signal/1Ground POS Crimp ST Cable Mount Loose Piece Product Highlights:HE.24 SeriesInsertProduct Size = 8Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 TE Connectivity HE 系列 24针 24P+E极 插头 电源连接器 HE.24.STI.C |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 极数 | 24+PE |
| 供电电压 | 400 | 最大额定电流 | 16A |
| 最小供电电压 | 400V | ||
机械参数
| 尺寸 | 8 | 颜色 | Gray |
| 深度 | 34 mm | 高度 | 33 mm |
| 包装方式 | Loose Piece | 端接方式 | Crimp |
| 触点形式 | HE/HA | 触头类型 | HE/HA |
| 安装类型 | Cable Mount | 连接器类型 | Insert without Contacts |
| 安装样式 | Cable | 插入件材料 | 插针 |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 总长度 | 110 mm |
| 包装数量 | 5 | 尺寸/外形 | 8 |
| 端接样式 | Crimp | 触点数 | 24Signal/1Ground |
| 位数 | 24+Ground | 外壳尺寸-插件 | 否 |
| 衬套/护套类型 | 不带 | ||
产品信息
| 备注 | 与 HTS 系列 HE/HA 接触件搭配使用 | 类型 | Rectangular |
| 连接器性别 | PL | 系列 | Han E |
| 极性 | 24P+E | 极数格式 | 24P+E |
| 产品子类型 | Inserts | 附件类型 | Contact |
| 适用产品/相关产品 | Stamped Crimp Contact | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
