点击放大查看

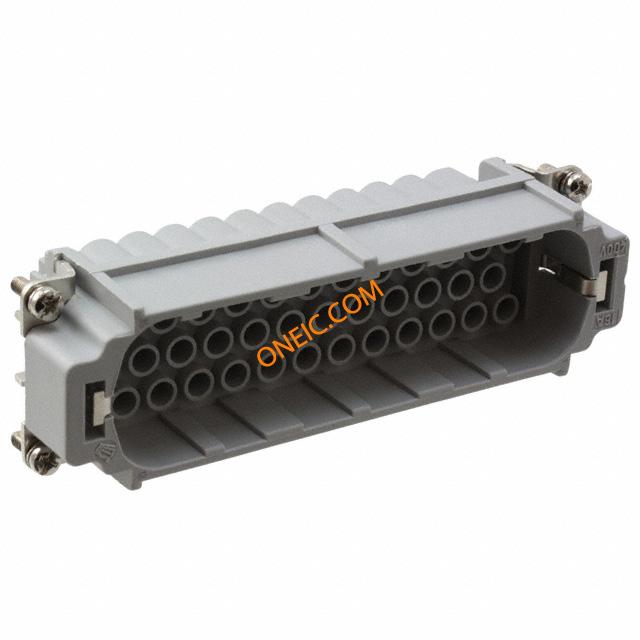

2-1104012-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular M 35Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN PIN INSERT 35+PE POS CRIMP Heavy Duty Power Connectors PIN INSERT SZ 8 HVT.35.STI.C Conn Rectangular M 35Signal/1Ground POS Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HVT.35.STI.C |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 极数 | 35+PE |
| 供电电压 | 400 | 最大额定电流 | 16A |
机械参数
| 尺寸 | 8 | 颜色 | Gray |
| 材料（通用） | PBT | 包装方式 | Loose Piece |
| 端接方式 | Crimp | 触头类型 | HVT |
| 安装类型 | Cable Mount | 连接器类型 | Insert without Contacts |
| 插入件材料 | 插针 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 包装数量 | 5 | 端接样式 | Crimp |
| 触点数 | 35Signal/1Ground | 位数 | 35+Ground |
| 外壳尺寸-插件 | 否 | ||
产品信息
| 备注 | 与 HTS 系列 HVT 接触件搭配使用 | 类型 | Rectangular |
| 连接器性别 | PL | 产品子类型 | 插入件 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
