282805-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 4 POS 5mm Screw RA Cable Mount 15A/Contact Pluggable Terminal Blocks TERM-BLOCK PLUG 4P R/A .197 Terminal Block Connectors TERM BLOCK PLUG 4POS STR 5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK PLUG STACKING 4POS. |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 150 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 绿色 | 出线方向 | 侧 |
| 引脚样式 | Side | 螺钉尺寸 | M3 |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 第二连接器 | 是 | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 螺丝材料 | Brass |
| 插入件材料 | 磷青铜 | 插头进线方向 | 180° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 100 | 连接器间距 | Side |
| 触点数 | 4 | 位数 | 4 |
| 接线端子类型 | Plug, Female Sockets | 端子螺钉表面处理 | 镍 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 中心触点材料 | 5.00 [0.197] |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Non-Wire Side), Side Stacking (Interlocking) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | With |
| 每层位数 | 4 | 并排堆叠 | 是 |
文档与媒体
相关型号

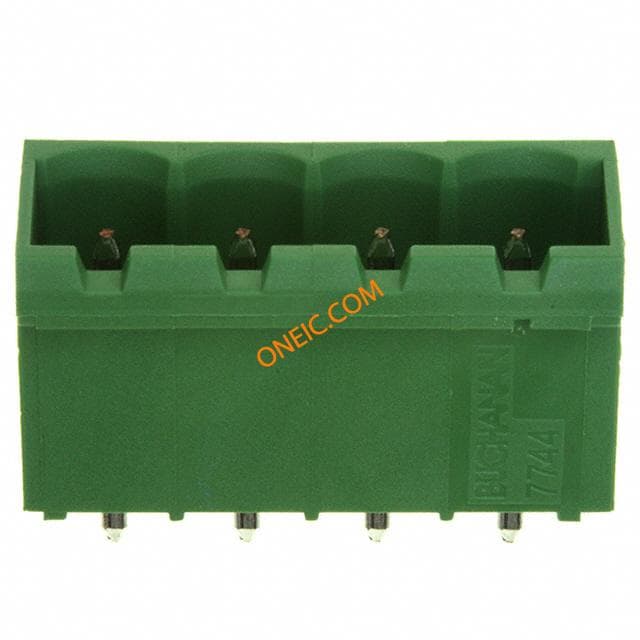

796642-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Pluggable Terminal Blocks HEADER 4POS VERT 5MM Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 4 Position Single Row Shrouded Header Green Eurostyle Terminal Block 4POS 5.0MM CE VRT HDR,TRM BLK
282811-4
te connectivity / amp

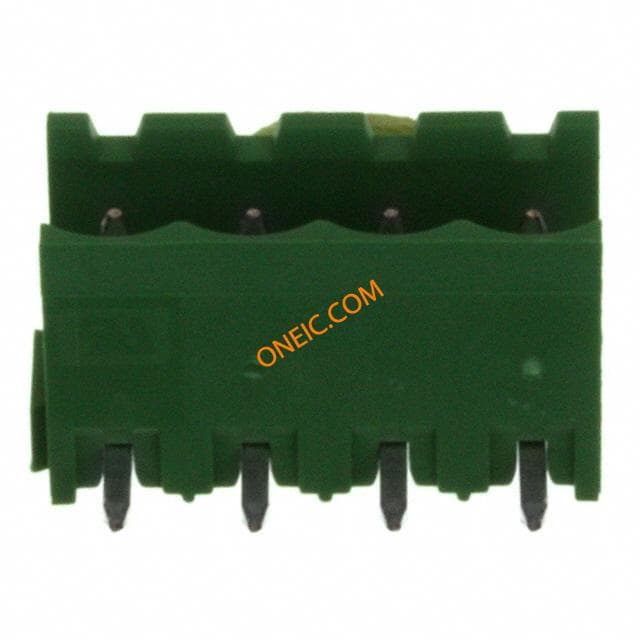

Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS R/A 5MM Pluggable Terminal Blocks HEADER ASSY 90 4P Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER ASSY90 4P.
796864-4
te connectivity / amp

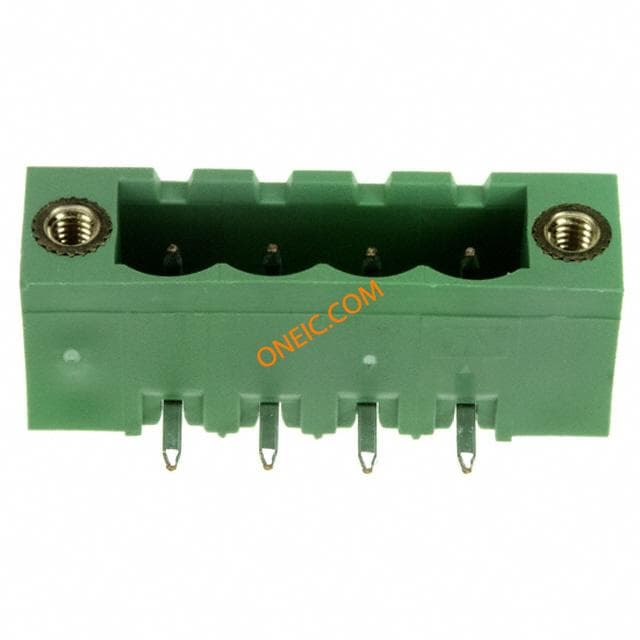

Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS R/A 5MM Pluggable Terminal Blocks 4 POS HDR RT ANGLE Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 4 POS TERMI-BLOK HDR RT ANGLE
282812-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER, ASSY 4P. 5 Terminal Block Connectors TERM BLOCK HDR 4POS R/A 5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER,ASSY 4P. 5
796644-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5MM Pluggable Terminal Blocks 5.0MM RA HDR 4 PIN Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5mm 节距 4 路 公 绿色 直 PCB 管座, 印刷电路板安装, 螺钉端接 4POS 5.0MM CE R/A HDR,TRM BLK
282822-4
te connectivity / amp

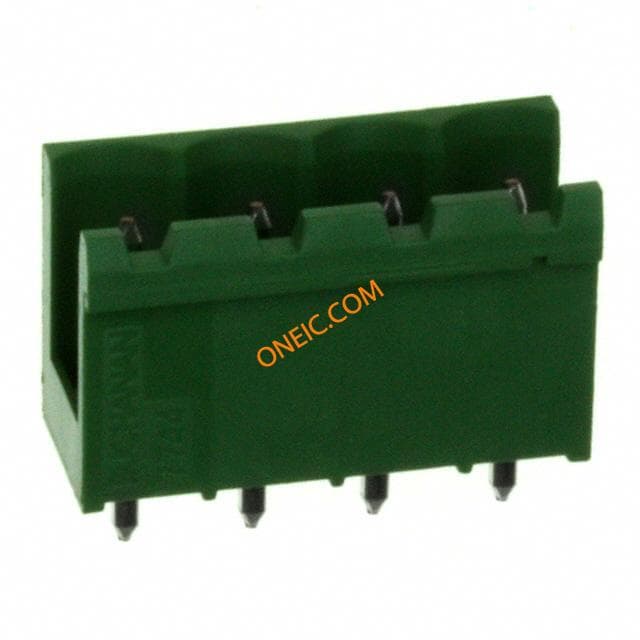

Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Pluggable Terminal Blocks TERMI-BLOK HEADER ASSY90 4P. Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PIN HEADER, EUROSTYLE, 4POS, 5MM TERMI-BLOK HEADER,ASSY90 4P.
