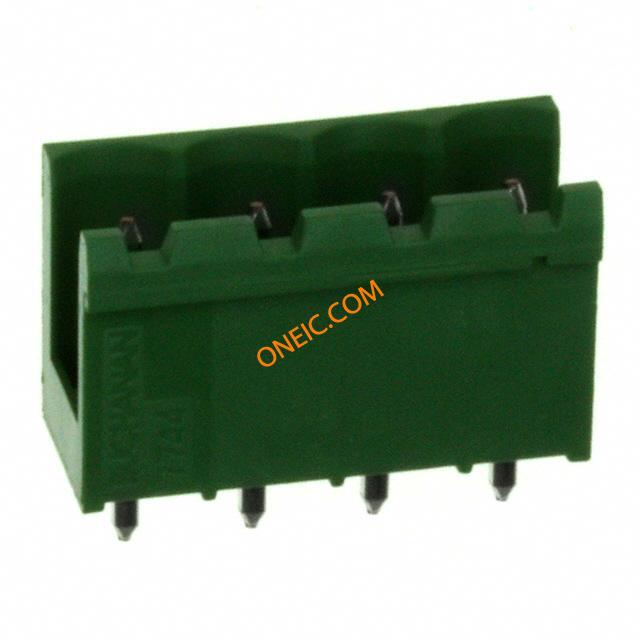

282822-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Pluggable Terminal Blocks TERMI-BLOK HEADER ASSY90 4P. Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PIN HEADER, EUROSTYLE, 4POS, 5MM TERMI-BLOK HEADER,ASSY90 4P. |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | :12AWG | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | :Eurostyle Terminal Block |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 排针方向 | Vertical | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Header, Male Pins, Shrouded (2 Side) |
| 线规或范围 - AWG | :30AWG | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | :282822 | 层数 | 1 |
| 每层位数 | 4 | ||
