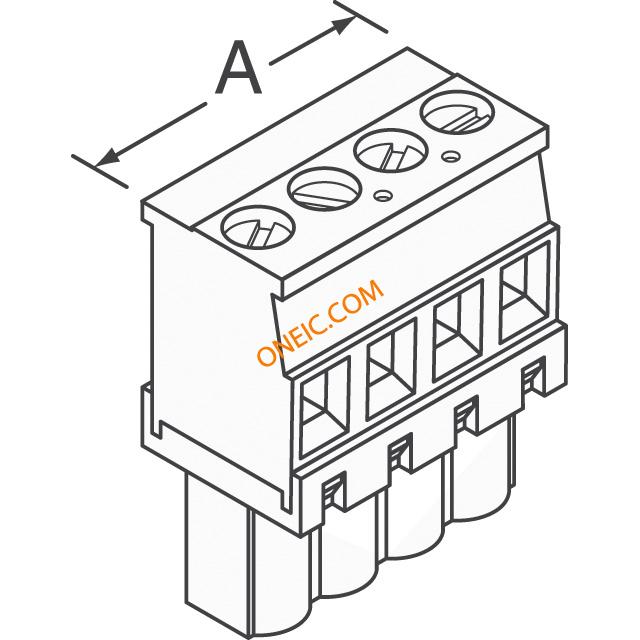

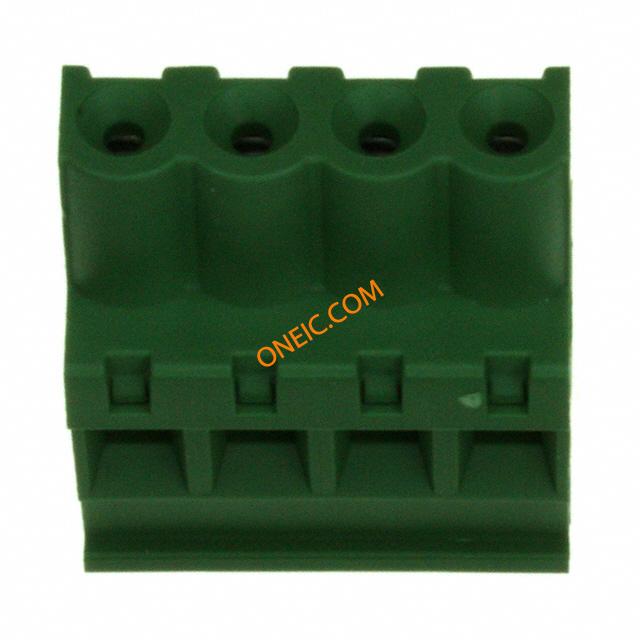

284040-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 4 POS 5mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 4P VERT 5mm Terminal Block Connectors TERM BLOCK PLUG 4POS 270DEG 5MM Conn Terminal Block F 4 POS 5mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK VERTICAL PLUG STACK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 12.5 mm |
| 间距 | 5 mm | 高度 | 25 mm |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 侧 | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 第二连接器 | 是 |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | Plug (left-hand) | 接触镀层 | Tin |
| 法兰特征 | Without | 安装样式 | Through Hole |
| 排数 | 1 | 螺丝材料 | Brass |
| 插入件材料 | 磷青铜 | 插头进线方向 | 270° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 20 mm | 包装数量 | 150 |
| 连接器间距 | Side | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
| 端子螺钉表面处理 | 镍 | 螺纹/螺钉/孔尺寸 | 黄铜 |
| 中心触点材料 | 5.00 [0.197] | 螺钉材料 - 镀层 | Nickel |
| 线规或范围 - AWG | 30-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Non-Wire Side) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 4 | 并排堆叠 | 是 |
文档与媒体
相关型号
796642-4
