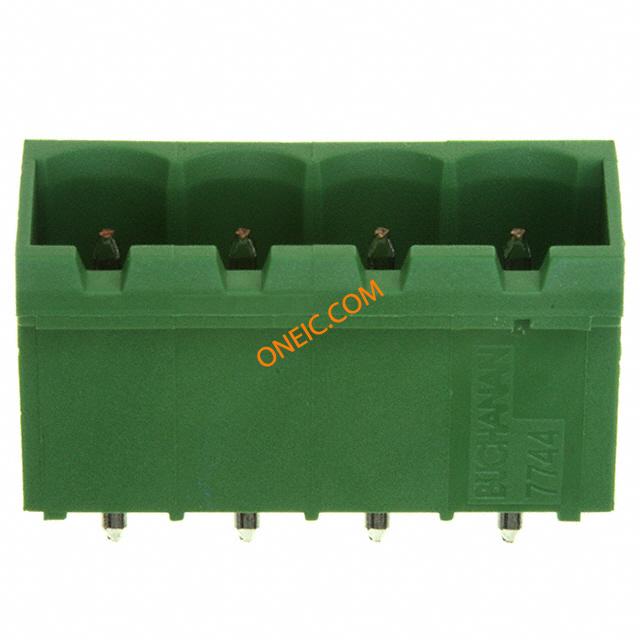

796642-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Pluggable Terminal Blocks HEADER 4POS VERT 5MM Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 4 Position Single Row Shrouded Header Green Eurostyle Terminal Block 4POS 5.0MM CE VRT HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300V |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 8.35 mm |
| 间距 | 5 mm | 高度 | 12 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 外壳颜色 | Green | 安装类型 | Through Hole |
| 连接器类型 | 头 | 接触镀层 | Tin |
| 法兰特征 | 是 | 安装样式 | Through Hole |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 22 mm | 包装数量 | 150 |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 4 | 位数 | 4 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
| 每层极数 | 4 | 第二连接器安装特性 | Vertical |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 层数 | 1 | 互连系统 | 不带 |
| 每层位数 | 4 | 并排堆叠 | 否 |
环境参数
| 工作温度 | -40C to 105C | ||
