796644-4

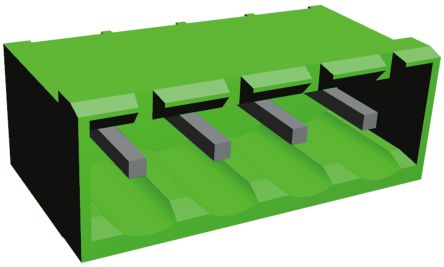

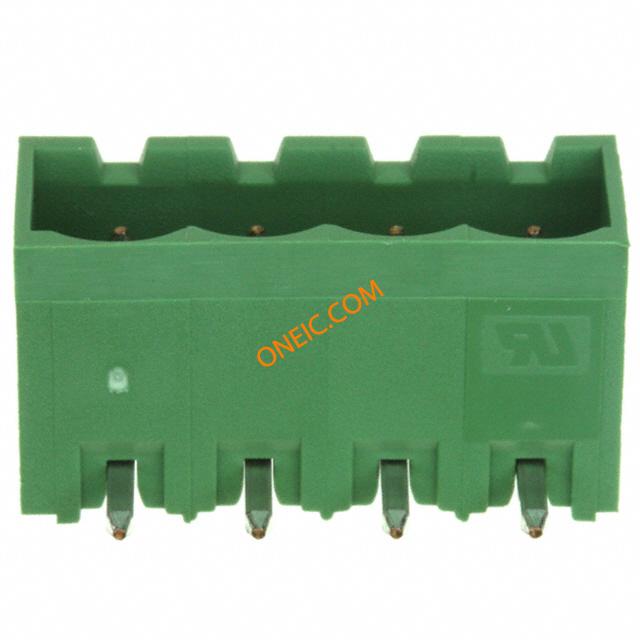

| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5MM Pluggable Terminal Blocks 5.0MM RA HDR 4 PIN Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5mm 节距 4 路 公 绿色 直 PCB 管座, 印刷电路板安装, 螺钉端接 4POS 5.0MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 深度 | 8.35mm |
| 间距 | 5 mm | 宽度 | 12mm |
| 长度 | 22mm | 材料（通用） | 尼龙 |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 引脚样式 | Right Angle |
| 导线线规 | 30 | 方向 | 直 |
| 端接方式 | Solder | 引脚长度（针脚） | 3.5 mm [ .138 in ] |
| 第二连接器 | 否 | 安装类型 | Through Hole |
| 连接器类型 | 公插 | 接触镀层 | Tin |
| 法兰特征 | 是 | 排数 | 1 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 150 |
| 端接排数 | 螺钉 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Buchanan | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 4 |
| 并排堆叠 | 否 | ||
文档与媒体
相关型号
282805-4
te connectivity / amp
Conn Terminal Block F 4 POS 5mm Screw RA Cable Mount 15A/Contact Pluggable Terminal Blocks TERM-BLOCK PLUG 4P R/A .197 Terminal Block Connectors TERM BLOCK PLUG 4POS STR 5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK PLUG STACKING 4POS.
796640-4
te connectivity / amp

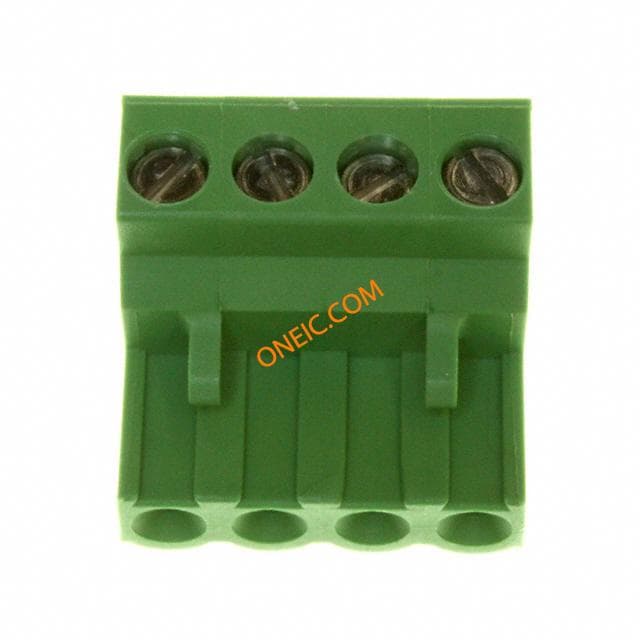

Conn Terminal Block F 4 POS 5mm Screw RA Cable Mount 15A/Contact Terminal Block Connectors TERM BLOCK PLUG 4POS STR 5MM Non-Fused Terminal Block Cable Mount 4 Way, Screw Down, 300V Pluggable Terminal Blocks 5.0MM RA PLUG 4P Conn Terminal Block F 4 POS 5mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK PLUGGABLE, 4POS, 30-12AWG Conn;TermBlk;Plug;Screw;4;5mm;RightAngle;30-12AWG;Green;15A;300V;M3 TE Connectivity 4 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 4 POS 5.0 MM R/A PLUG,TRM BLK
