点击放大查看

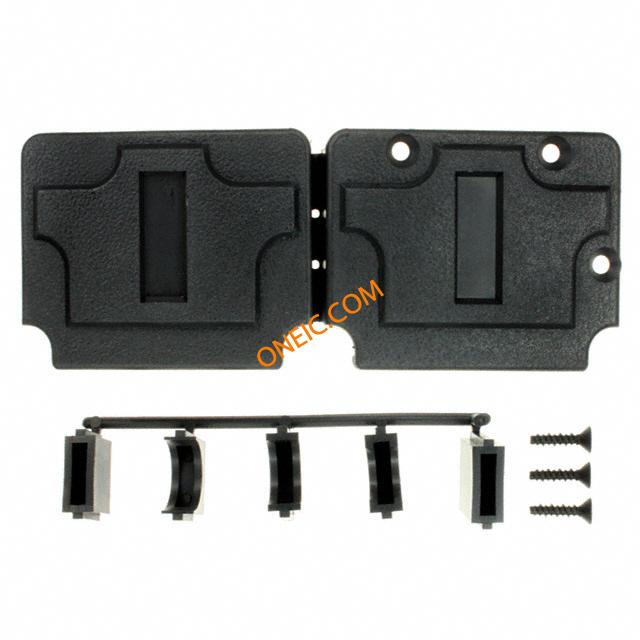

207476-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Clamp Polypropylene Individual D-Sub Backshells 50 PIN CABLE CLAMP Cable Clamps CONN BACKSHELL DB50 PLASTIC Backshell/Cable Clamp 90°/180° 5 Shell Size Polypropylene Individual Backshell/Cable Clamp 90°/180° 5 Shell Size Polypropylene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 12.45 mmShell Size = 5Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;50Pos;Straight/90DegExit;AMPBrand;Polypropylene;0.490In.CblDia HDP-20 Series 50/78 Position Polypropylene 180?90?Exit Angle Cable Clamp Kit CABLE CLAMP KIT,SZ 5 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 连接器阻抗 | 90, 180 | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 5 |
| 材料（通用） | Polypropylene | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/90° |
| 电缆类型 | Round | 外壳尺寸 | 5 |
| 屏蔽类型 | No | 螺纹尺寸 | None |
| 外壳镀层 | None | 电缆直径 | 12.45 mm |
| 电缆端类型 | Variable Entries | 电缆材料 | Polypropylene |
| 连接器类型 | 盒和盖 | 螺丝材料 | Steel |
| 外壳材料（壳体） | Polypropylene | 屏蔽材料 | 无 |
| 包装数量 | Individual Kit | 电缆端接方式 | Box and Lid |
| 外径 | 12.45 mm [ .49 in ] | 绝缘直径 | 12.45 [0.490] |
| 位数 | 50 | 镀层厚度（通用） | Zinc |
| 衬套/护套类型 | Without | 电缆对数 | 2 |
| 后壳材料及镀层 | Polypropylene | 控制侧电缆固定器 | Without |
产品信息
| 备注 | Cable diameter is adjustable by changing cable support gates. Use the flat side | 类型 | Backshell and Cable Clamp |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Hinged Backshell |
| 射频系列/标准 | 207476 | 其他规格 | 不带 |
