点击放大查看

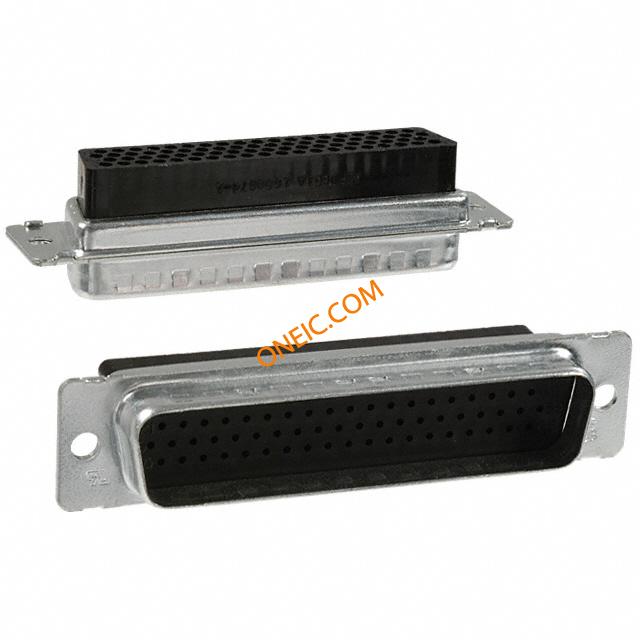

1658674-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 78 POS Crimp ST D-Sub High Density Connectors PLUG 78P GRND INDNTS Standard Cable Connectors CONN D-SUB HOUSING PLUG 78POS AMPLIMITE HDP-22 d-sub cable plug,78 pin Conn Housing PL 78 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 78PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;78Pos;STR;HDP-22Series;CrimpSnap;22AWG;MetalShell TE Connectivity AMPLIMITE HDP-22系列 78路 直 压接式 D-sub 连接器, 插头 HDP-22,PLUG,SIZE 5,78 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 450 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 防护类型 | UL 94V-0 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized,ULListedandCSACertified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 17.8mm |
| 宽度 | 15.36mm | 高度 | 15.36 mm |
| 长度 | 66.95mm | 外形尺寸(长x宽) | 5 |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 外壳尺寸 | 5 | 导线线规 | 22 |
| 方向 | 直 | 端接方式 | Crimp |
| 触点形式 | Signal | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Tin | 端子尺寸 | 22 |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 4 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 插入件材料 | Nylon | 壳体材料 | Nylon |
| 总长度 | 66.95 mm | 包装数量 | 50 |
| 主要材料 | D-Subminiature | 尺寸/外形 | 66.95 x 15.36 x 17.8mm |
| 接地凹痕 | With | 端接样式 | Crimp |
| 触点数 | 78 | 介电材料 | Polyamide (PA), Nylon, Glass Filled |
| 位数 | 78 | 外壳尺寸-插件 | Front Metal Shell |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-22 | 产品特性 | Grounding Indents |
| CAD图纸 | 3D CAD Model | 主要用途 | Grounding Indents |
| 制造商全称 | HDP-22 | 产品子类型 | Connector |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Commercial |
环境参数
| 工作温度 | 105°C | ||
