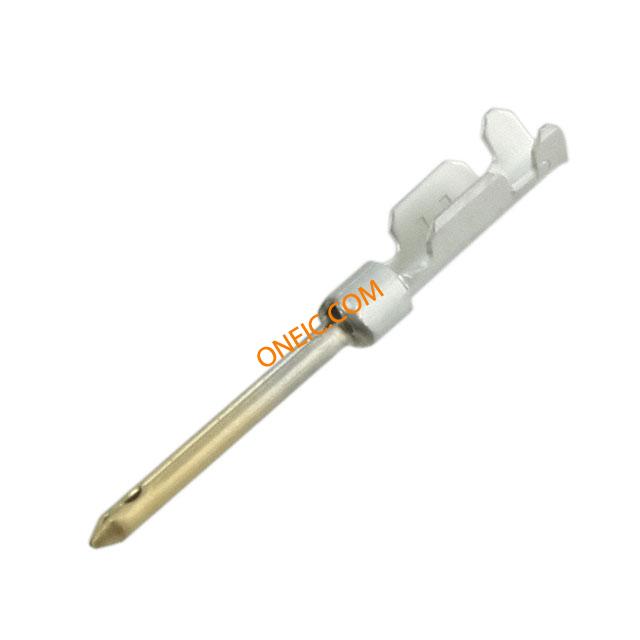

1658670-3

点击放大查看

1658670-3

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts PIN 28-22 PHBZ/AU Standard Cable Connectors CONN PIN 22-28AWG CRIMP GOLD FL Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-22 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,PIN,HDP-22,CRIMP,22-28AWG TE Connectivity AMPLIMITE HDP-22系列 尺寸22触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 22 AWG PIN CONTACT,22 DF,STRIP,22-28
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100466CT产品类别D-Sub Contacts
标准包装数量20,000工厂包装数量20000

合规参数

RoHSRoHS Compliant抗辐射加固No
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

输入端.04连接器阻抗压接

机械参数

深度1.91 mm间距Not Required mm
长度0.585in镀层Gold
材料（通用）Brass包装方式Reel
导线线规28-22端接方式Crimp
触点尺寸22DF触头类型Signal
引脚直径0.76 [0.030]安装类型Straight
插针或插孔Pin端子尺寸22
连接器类型Connector D-Subminiature接触镀层Gold Over Nickel
安装样式Cable插入件材料黄铜
触头材料Brass壳体材料Not Required
总长度14.86 mm包装数量Strip
端接排数压接绝缘高度Yes
端接样式Crimp第一触头极性Pin (Male)
触点数Not Required接触件端接Crimp Snap-In
绝缘直径0.76 – 1.02 [0.030 – 0.040]镀层厚度（通用）Flash
兼容外壳尺寸（如TM-700等）AMPLIMITE接触镀层厚度100
线规或范围 - AWG0.08 - 0.40 [28-22]线规或范围 - mm²28 → 22 AWG

产品信息

备注For Mini Applicator.类型Stamped
等级Standard连接器性别PIN
系列HDP-20产品子类型Contact
端口数1 Port
