点击放大查看

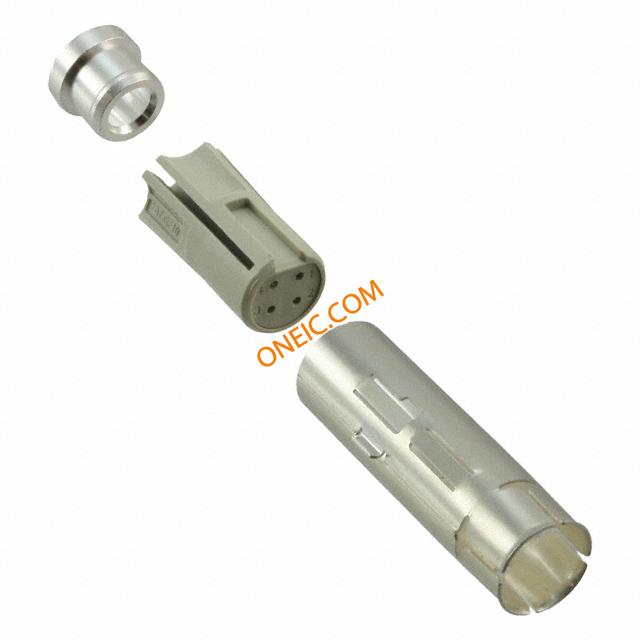

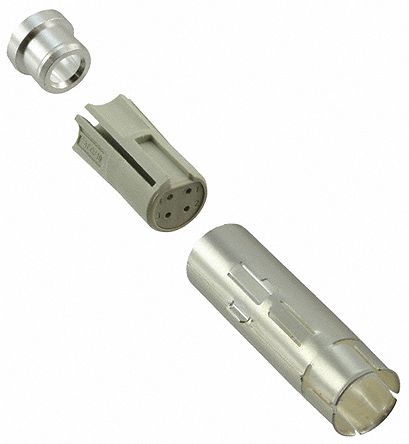

1103426-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN HSG INSERT ASSY 4POS PIN HC26.Sti.4.C HC26.Sti.4.C Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CIRCULAR INSERT, PIN, 4POS, CRIMP TE Connectivity 4路 连接器 插头 MALE INSERT, CRIMP, 4-POS. 22DF CONTACTS |
| 分类 |
商业参数
| 标准包装规格 | 40 | 标准包装数量 | 40 |
合规参数
| 海关税号 | 85369010 | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 方向 | Keyed | 触点尺寸 | 22D |
| 触头类型 | Crimp | 连接器类型 | Insert for Male Contacts |
| 插入角度 | :- | 触头材料 | :Copper |
| 第一触头极性 | :Pin | 触点数 | :4 |
| 接触件端接 | :Crimp | 位数 | 4 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Copper Alloy, Silver Plated |
产品信息
| 备注 | Contacts Not Provided | 系列 | :HC26 Power4Net |
| 产品特性 | Insert Only, Requires Shell | 适用产品/相关产品 | :HC26 Power4Net Housings |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | ||
