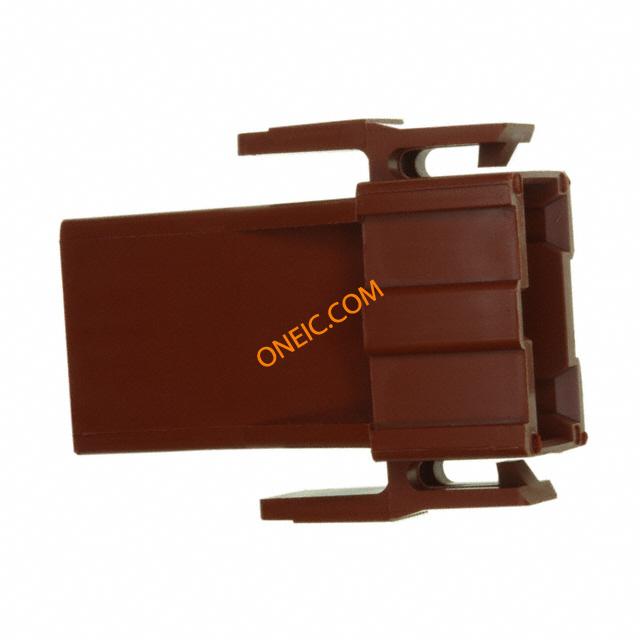

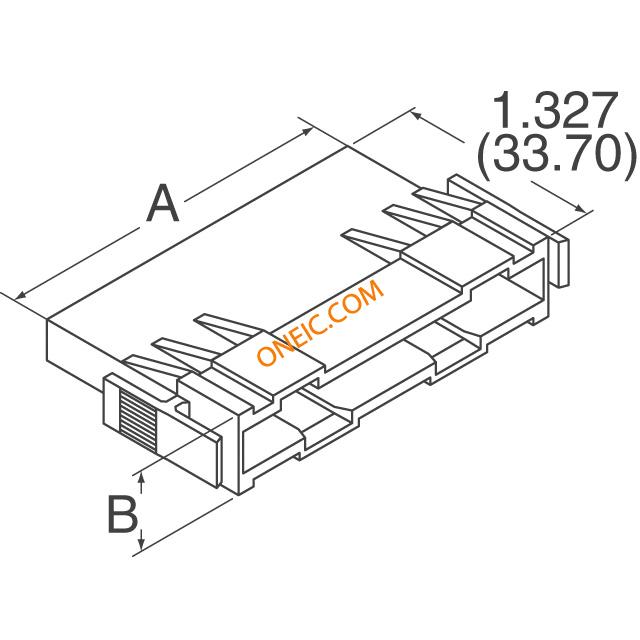

207359-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 5mm ST Metrimate Connectors CONN RECEPT 3 POS METRIMATE Housing,recpt,Metrimate,1 row,3 Way Pin & Socket Connectors 3 POS CONN IN-LINE Conn Housing RCP 3 POS 5mm ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECEPT HSG, 3 POSN, METRIC Housing,SoftShell;Receptacle;3;600VAC;Thermoplastic;Red;In-Line TE Connectivity Metrimate 系列 2 行 5mm 节距 3 路 直 母 压接连接器外壳 RECEPT HSG,3 POSN,METRIC |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVCompliant,ULListed |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL,VDE | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 33.7mm |
| 间距 | 5 mm | 宽度 | 12.32mm |
| 高度 | 33.7 mm | 长度 | 26.25mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 触头类型 | Male Pin | 第二连接器 | With |
| 外壳颜色 | Red | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Housing |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 轴直径 | Without |
| 连接器用途 | In-Line | 锁定特性 | Locking Tab |
| 壳体材料 | Thermoplastic - GF | 总长度 | 26.25 mm |
| 安装特性 | Without | 包装数量 | 150 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.197" |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 传感器连接器 | Without | 触点数 | 3 |
| 接触件端接 | Crimp and Solder | 位数 | 3 |
| 中心触点表面处理 | 5.0 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP Metrimate |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Housing | 配置 | In-Line |
| 其他规格 | No | 适用产品/相关产品 | Centerline Pin & Socket Connector, In-Line Pin & Socket Connector |
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号

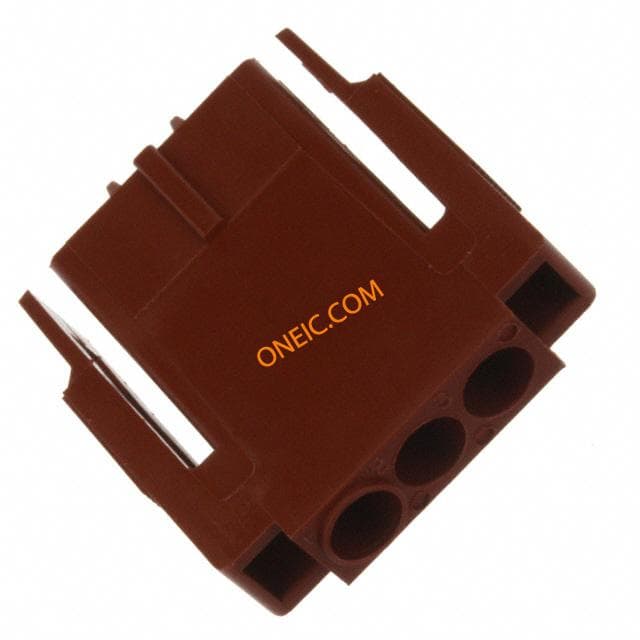

207360-1
te connectivity / amp
Conn Housing PL 3 POS 5mm Crimp ST Metrimate Connectors CONN PLUG 3 POS METRIMATE Housing,plug,Metrimate,1 row,3 Way Pin & Socket Connectors 3P PLUG HOUSING Conn Housing PL 3 POS 5mm Crimp ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, INLINE PLUG, 3 PIN Plug,InLine,FreeHanging,3Pos TE Connectivity Metrimate 系列 5mm 节距 3 路 直 公 压接连接器外壳 PLUG HSG,3 POSN,METRIC
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66406-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors PIN 30-26 BR/AU SIG TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp Contact; male; 0.05÷0.15mm2; 26÷30AWG; Type III+; gold plated III+ PIN,30-26,30AU/FL,LP
66106-7
te connectivity / amp
III+ PIN,26-24,15AU/FL,STRIP Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors TYPE III + PIN 26-24 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66602-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Standard Circular Connector PIN 18-14 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-14AWG;Crimp MultiMate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,30AU/FL,LP
207608-3
te connectivity / amp
Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors SKT HDR ASSY,3 POSN,METRIMATE Power to the Board METRIMATE SKT HDR 3P 168
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
207608-7
te connectivity / amp
Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HEADER SCKT 3POS R/A 30GOLD Pin & Socket Connectors SKT HDR ASSY 3P MMATE Conn Wire to Board SKT 3 POS 5mm Solder RA Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,3P,MMATE
66359-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Pin & Socket Connectors III+ PIN18-1415 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,18-14,15AU/FL,STRIP Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,15AU/FL,STRIP

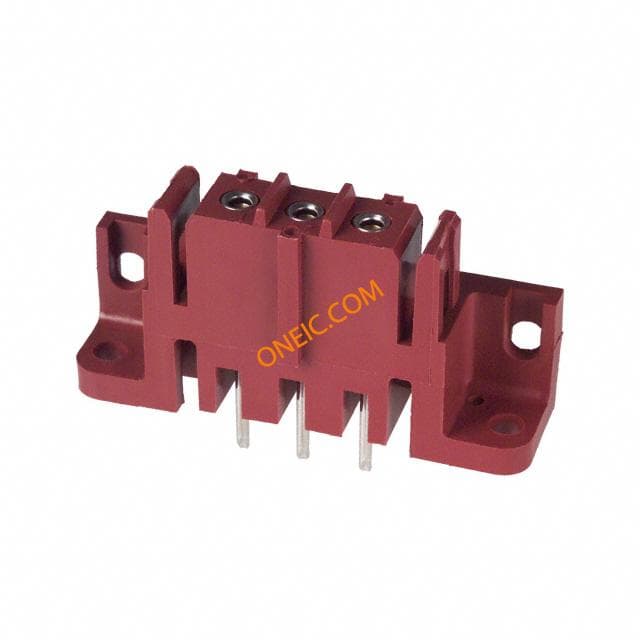

207609-7
te connectivity / amp
Conn Wire to Board SKT 3 POS 5mm Solder ST Panel Mount Metrimate Connectors CONN HEADER SOCKT 3POS VERT GOLD Pin & Socket Connectors 3P SOCKET HEADER GLD METRIMATE Conn Wire to Board SKT 3 POS 5mm Solder ST Panel Mount Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,3P,MMATE LF

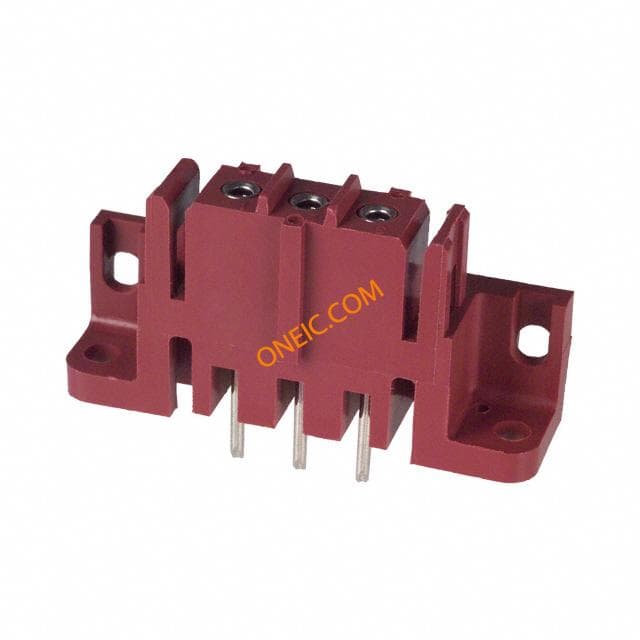

207609-6
