207360-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 3 POS 5mm Crimp ST Metrimate Connectors CONN PLUG 3 POS METRIMATE Housing,plug,Metrimate,1 row,3 Way Pin & Socket Connectors 3P PLUG HOUSING Conn Housing PL 3 POS 5mm Crimp ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, INLINE PLUG, 3 PIN Plug,InLine,FreeHanging,3Pos TE Connectivity Metrimate 系列 5mm 节距 3 路 直 公 压接连接器外壳 PLUG HSG,3 POSN,METRIC |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL,VDE |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 7.85 mm |
| 间距 | 5 mm | 高度 | 27.5 mm |
| 长度 | 23.7mm | 重量 | 0.00227 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Red |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Housing | 紧固类型 | Latch Holder |
| 安装样式 | Free Hanging | 排数 | 1 |
| 轴直径 | Without | 连接器用途 | In-Line |
| 锁定特性 | Locking Latch | 壳体材料 | Thermoplastic - GF |
| 总长度 | 23.7 mm | 安装特性 | Without |
| 包装数量 | 100 | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.197" | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Red |
| 传感器连接器 | Without | 触点数 | 3 |
| 接触件端接 | Crimp and Solder | 位数 | 3 |
| 中心触点表面处理 | 5.0 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMP Metrimate |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Housing | 其他规格 | No |
| 适用产品/相关产品 | Centerline Pin & Socket Connector, In-Line Pin & Socket Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号
66601-1
te connectivity / amp
III+ SKT,18-14,TIN-LEAD,LP Multimate CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSLP,III+SKT,18-14,TIN-LEAD,LP
66109-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 24-26AWG GOLD CRIMP Contact,female,26-24 awg,crimp Standard Circular Contacts GOLD SOCKET 26-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);26-24AWG MULTIMATE Type III+ Series 26-24 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 26 → 24 AWG 线规格 III+ SKT,26-24,30AU/FL,LP
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP

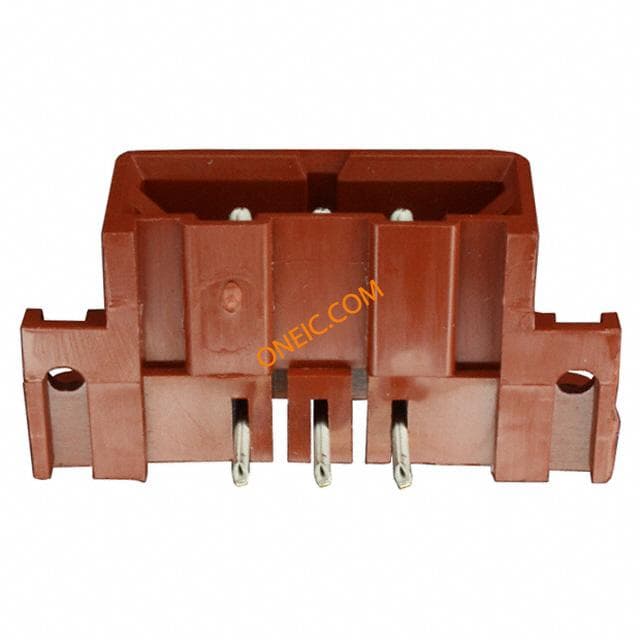

207541-6
te connectivity / amp
Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HDR PIN 3 POS METRIMATE TIN Pin & Socket Connectors MMATE PIN HEDER ASSM 3P LF Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, MMATE PIN HEADER ASSY,3P LF

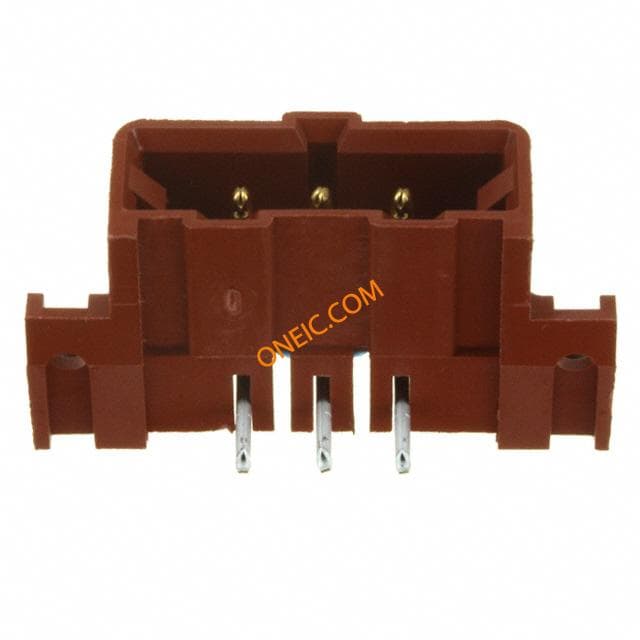

207541-7
te connectivity / amp
Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HDR PIN 3 POS METRIMATE AU TE Connectivity 5mm 3 Way 1 Row Right Angle Through Hole Male Multiway Connector Pin & Socket Connectors PIN HDR ASSY 3P Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, Header3waypinrightangleMetrimate TE Connectivity 3路 5mm节距 直角 通孔 公 MMATE PIN HEADER ASSY,3P LF
202237-5
te connectivity / amp
Contact SKT Solder ST Cable Mount Loose Piece Multimate CONN SKT .062 SLD POST TIN Contact Socket solder Multimate Pin & Socket Connectors TIN SOCKET SOLDER Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:Socket with Solder TabBright Tin Contact Mating Area PlatingBrass Contact MaterialBright Tin Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, SOLDER MULTIMATETypeIII+Contact,Socketw/SolderTab,Size16Contact,Tin MultiMate Connector Type III+ Tin Termination End Plating Pin Solder Tab TE Connectivity Type III+ 系列 13A 母 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器, 16 AWG 线规格 III+ SOC,SOLTAB,TIN,LP

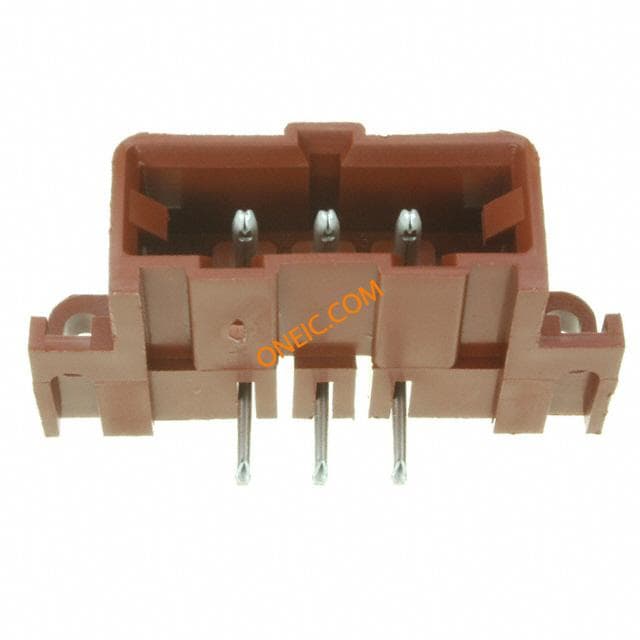

207541-3
te connectivity / amp
Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HDR PIN 3 POS METRIMATE AU Power to the Board METRIMATE PIN HDR 3P Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE PIN HEADER ASSY,3P
207359-1
te connectivity / amp

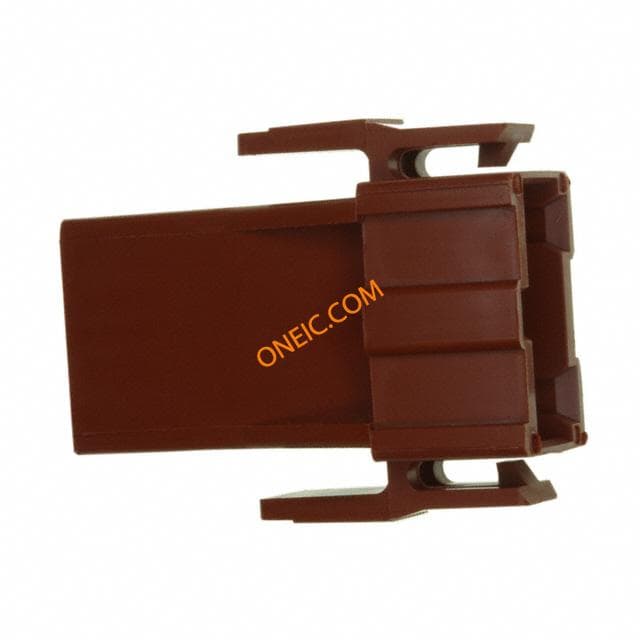

Conn Housing RCP 3 POS 5mm ST Metrimate Connectors CONN RECEPT 3 POS METRIMATE Housing,recpt,Metrimate,1 row,3 Way Pin & Socket Connectors 3 POS CONN IN-LINE Conn Housing RCP 3 POS 5mm ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 3ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, RECEPT HSG, 3 POSN, METRIC Housing,SoftShell;Receptacle;3;600VAC;Thermoplastic;Red;In-Line TE Connectivity Metrimate 系列 2 行 5mm 节距 3 路 直 母 压接连接器外壳 RECEPT HSG,3 POSN,METRIC
207365-3
te connectivity / amp

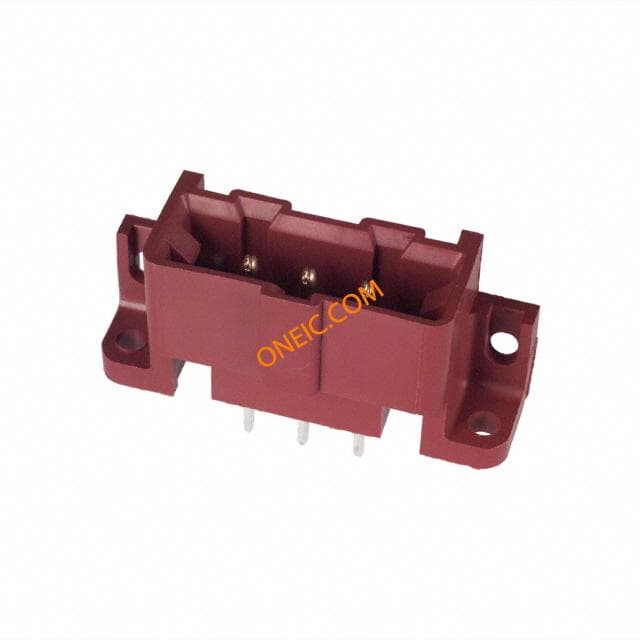

Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 3POS VERT GOLD Pin & Socket Connectors PIN HEADER 3P Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderIn-Line Connector ConfigurationNumber of Positions = 3PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE PIN HEADER ASSY,3P
207541-1
te connectivity / amp
Conn Wire to Board PIN 3 POS 5mm Solder RA Thru-Hole Metrimate Connectors CONN HDR PIN 3 POS METRIMATE TIN Pin & Socket Connectors METRIMATE PIN HEADER 350 METRIMATE PIN HEADER ASSY,3P
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66399-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-24AWG TIN CRIMP Multimate III Socket Contact 24-20 AWG Pin & Socket Connectors TIN SOCKET 24-20 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 24-20AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);Commercial;AMP Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped III+ SKT,24-20,TIN ,LP
207365-1
te connectivity / amp

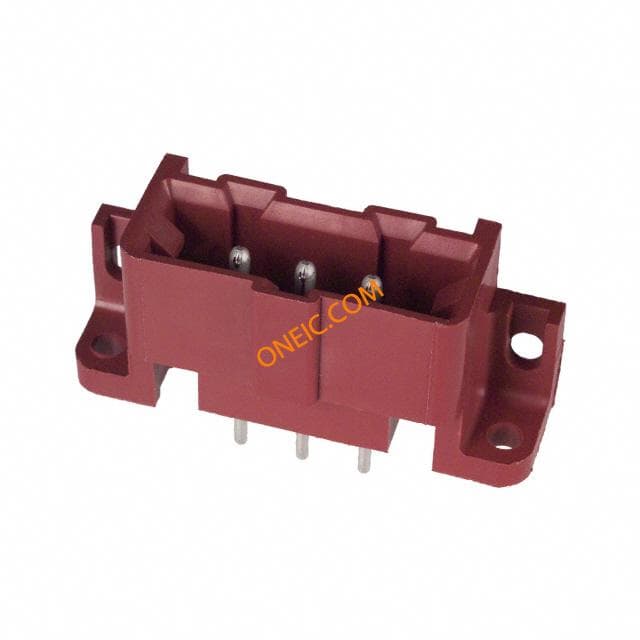

Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 3POS VERT TIN Pin & Socket Connectors PIN HDR ASSY METRIMATE 3P METRIMATE PIN HEADER ASSY,3P
