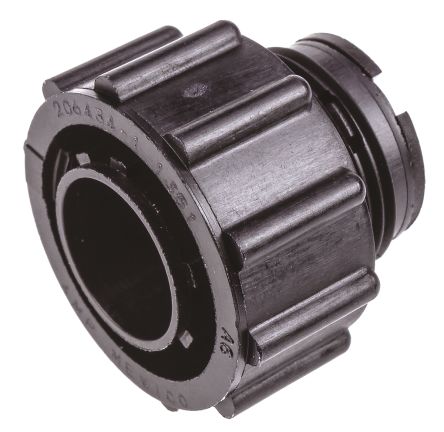

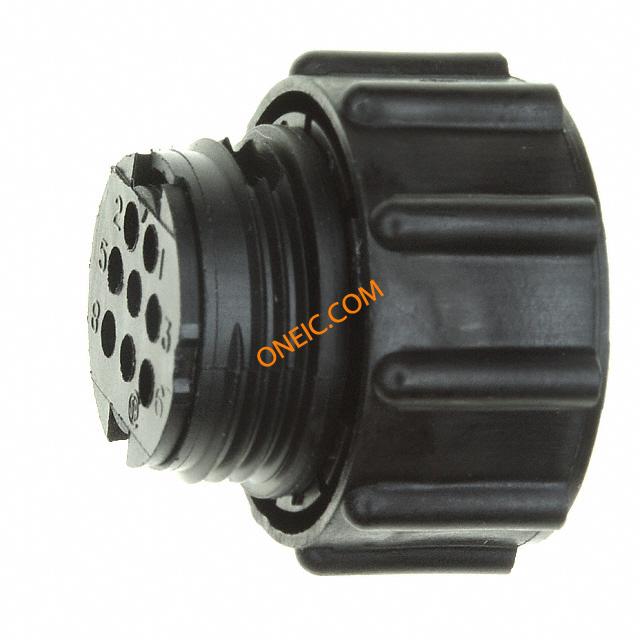

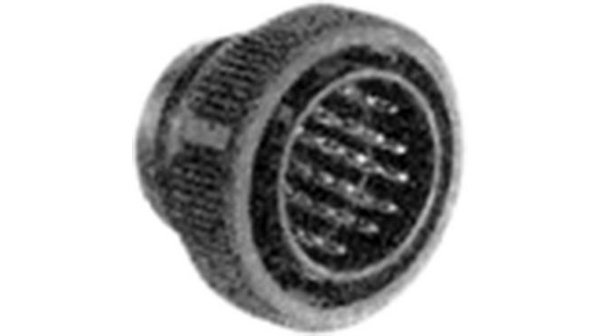

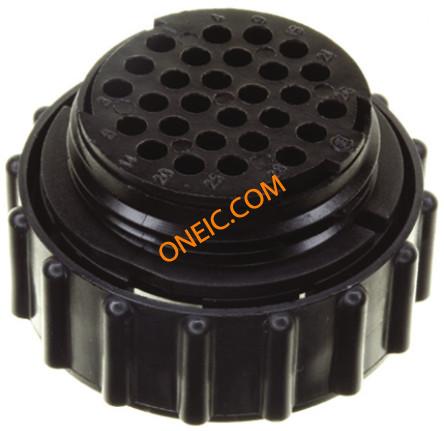

206434-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CPC Connectors CONN PLUG CPC 8POS REV SER 2 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector PLUG REVERSE 11-8 Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 11-8, CABLE ConnectorHousing;CPCPlugAssy;8Pos.;Sz.11;Series2;FreeHang;RevSex Connector: circular; Series: CPC Series 2; plug; male; PIN:8 Plug CPC2 Poles=8, accepts male contacts / Free hanging/cable mount, 206434-1, TE Connectivity TE Connectivity 8路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 11-8 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 耦合系数 | With |
| 工作电压 | :250V | 通道数量 | 8 |
| 最大额定电流 | :7.5A | 绝缘电阻 | :5000Mohm |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.004 | 直径 | 24.77 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点形式 | 8Signal |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Glass filled nylon 6.6 | 连接器样式 | Plug |
| 插入角度 | :11-8 | 锁定特性 | threaded joint, internal thread |
| 本体材料 | :Thermoplastic | 磁芯材质 | Nylon |
| 壳体材料 | Thermoplastic | 总长度 | 20.32 mm |
| 主要材料 | CircularPlasticConnector | 连接器 - 电缆 | plug |
| 端接样式 | Wire | 第一触头极性 | Male |
| 连接器颜色 | :Black | 配接方向 | Keyed |
| 触点数 | 8 | 接触件尾部长度 | 20D |
| 绝缘直径 | 1.73 [0.068] | 位数 | 8 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Cable | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 11-8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 11-8 | 制造商全称 | Series2 |
| 产品子类型 | Connector | 适配器系列 | CPC Series 2 |
| 单元数量 | 1 | 射频系列/标准 | 206434 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
