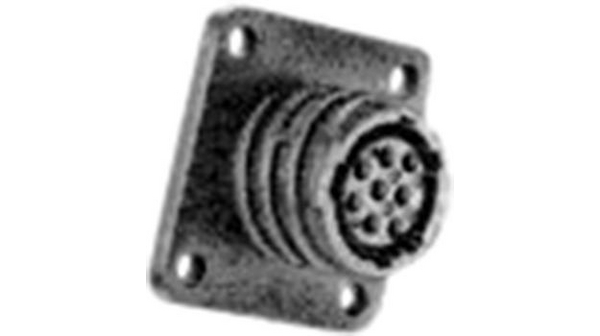

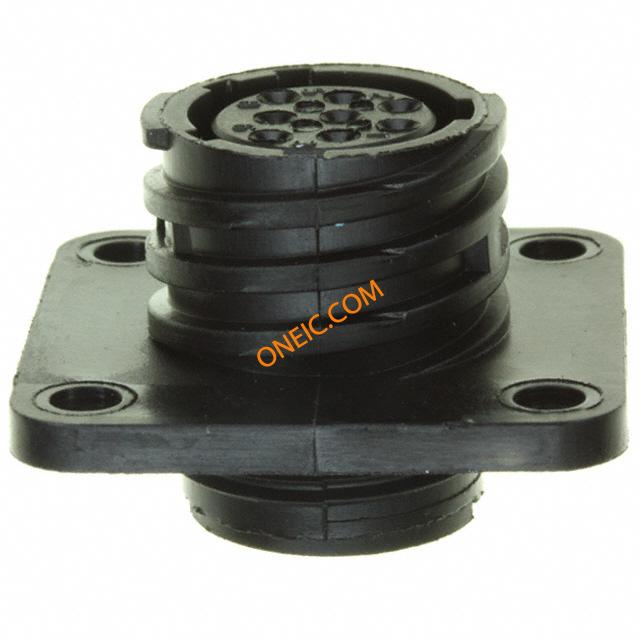

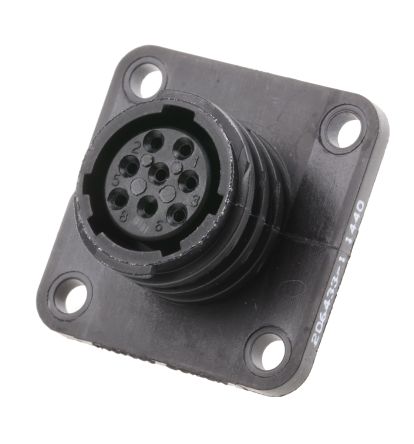

206433-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CPC Connectors CONN RECEPT CPC 8POS REV SER 2 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector RECP SQUARE REV 11-8 Conn CPC SKT 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 8WAY ConnectorHousing;CPCRecept.Assy;8Pos.;Sz11;Series2;PanelMnt;RevSex Connector: circular; Series: CPC Series 2; socket; female; PIN:8 Receptacle CPC2 Poles=8, accepts female contacts / with flange, 206433-1, TE Connectivity TE Connectivity 8路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 11-8 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 8 | 最大额定电流 | :7.5A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 6.81 | 包装方式 | Bulk |
| 外壳尺寸 | 11 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 封装形式 | size 11 |
| 连接器样式 | Receptacle | 插入角度 | :11-8 |
| 锁定特性 | threaded joint, external thread | 本体材料 | :Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | socket | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 8 |
| 面板开孔形状 | :21.5mm | 接触件尾部长度 | 20D |
| 绝缘直径 | 1.73 [0.068] | 位数 | 8 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 11-8 | 制造商全称 | Series2 |
| 产品子类型 | Connector | 适配器系列 | CPC Series 2 |
| 单元数量 | 1 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 工作温度 | :105°C | ||
