点击放大查看

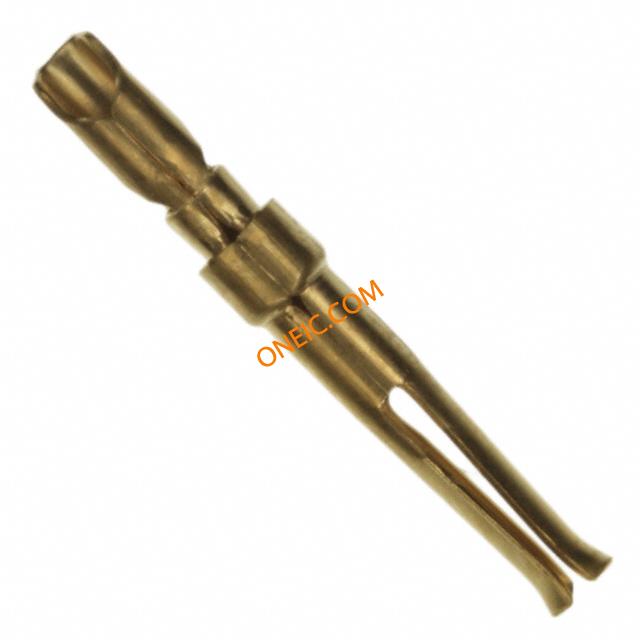

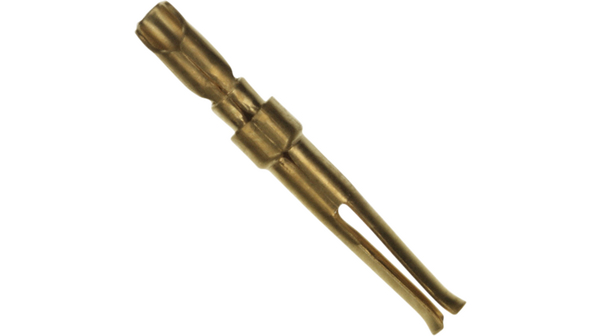

66569-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET SOLDER CAP 30AU AMPLIMITE HDP-20 socket crimp contact Standard Circular Connector SOLDER SKT CNT 18 Contact SKT Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 18AWG, SOLDER 20DFSOCKETCONT.L.P. Contact; female; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Socket Contact Crimp Contact 7.5 A, 66569-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 焊杯 插座 D-sub 连接器触点, 镀金镀镍 触点, 22 → 18 AWG 20DF SOCKET CONT. L.P. |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | :7.5A |
| 连接器类型 - 电压输入 | for CPC connectors Series 2 | ||
机械参数
| 深度 | 2.16 mm | 间距 | Not Required mm |
| 长度 | 14.22mm | 重量 | 0.011 |
| 镀层 | Gold | 材料（通用） | Phosphor Bronze |
| 包装方式 | Bulk | 导线线规 | 18 AWG |
| 端接方式 | Solder Cup | 触点尺寸 | 20 |
| 触头类型 | Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel | 安装样式 | Wire |
| 封装形式 | size 20 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 14.22 mm |
| 包装数量 | Loose Piece | 连接器 - 电缆 | contact |
| 绝缘高度 | No | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | Not Required |
| 接触件端接 | Crimp Snap-In | 镀层厚度（通用） | 30µin (0.76µm) |
| 线规或范围 - AWG | 0.8 - 0.9 [18] | 线规或范围 - mm² | :0.09mm² |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 500 | 类型 | Stamped |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDP-20 (Crimp Snap) | 产品子类型 | Contact |
| 适配器系列 | HDP-20 | 端口数 | 1 Port |
| 单元数量 | 1 | 适用/相关制造商 | CPC Connectors, AMPLIMITE HDP-20 |
