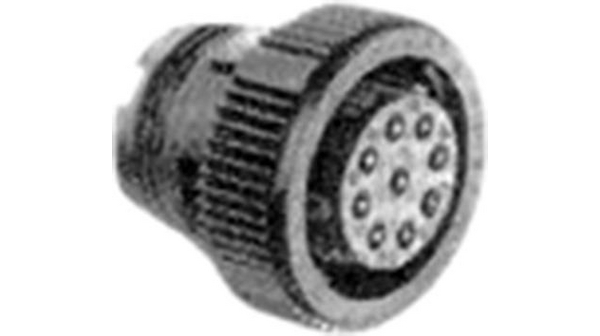

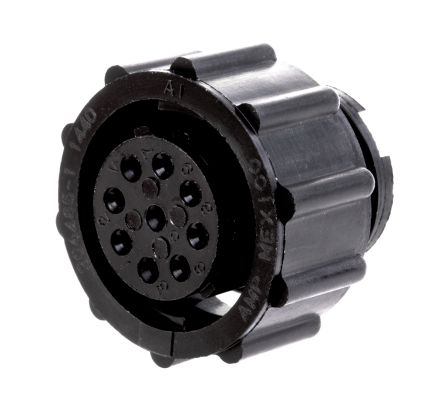

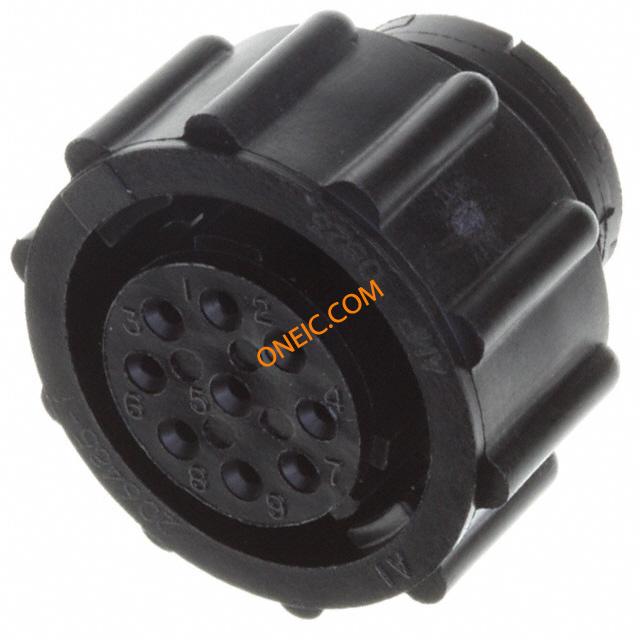

206485-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 9 POS ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER 2 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector PLUG STANDARD 11-9 Conn CPC SKT 9 POS ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, SOCKET CONTACT, 9WAY CIR CONNECTOR PLUG SIZE 11, 9POS FREE HANGING ConnectorHousing;CPCPlugAssy;9Pos.;Sz.11;Series2;FreeHang;StdSex Connector: circular; Series: CPC Series 2; plug; female; PIN:9 Plug CPC2 Poles=9, accepts female contacts / Free hanging/cable mount, 206485-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插座 CPC PLUG ASSEMBLY SIZE 11-9 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac | 工作电压 | :250V |
| 通道数量 | 9 | 最大额定电流 | :7.5A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.51 | 直径 | 24.76 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 11 | 方向 | Keyed |
| 外壳样式 | Plug | 螺纹尺寸 | 5/8 - 24 UNEF-2A |
| 触点形式 | 9Signal | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Glass filled nylon 6.6 |
| 连接器样式 | Plug | 插入角度 | :11-9 |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 20.32 mm |
| 包装数量 | 10 | 主要材料 | CircularPlasticConnector |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 9 |
| 接触件尾部长度 | 20D | 绝缘直径 | 1.73 [0.068] |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 11-9 |
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 2 | 预加载 | No |
| 排列方式 | 11-9 | 制造商全称 | Series2 |
| 产品子类型 | Connector | 适配器系列 | CPC Series 2 |
| 单元数量 | 1 | 射频系列/标准 | 206485 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
