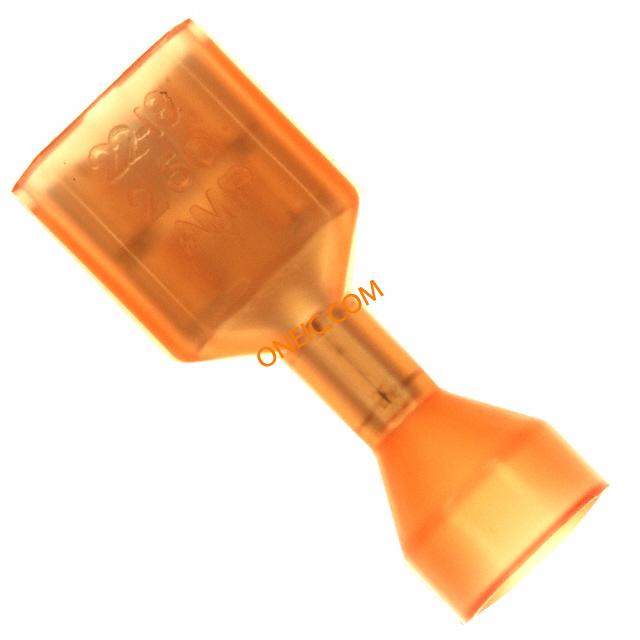

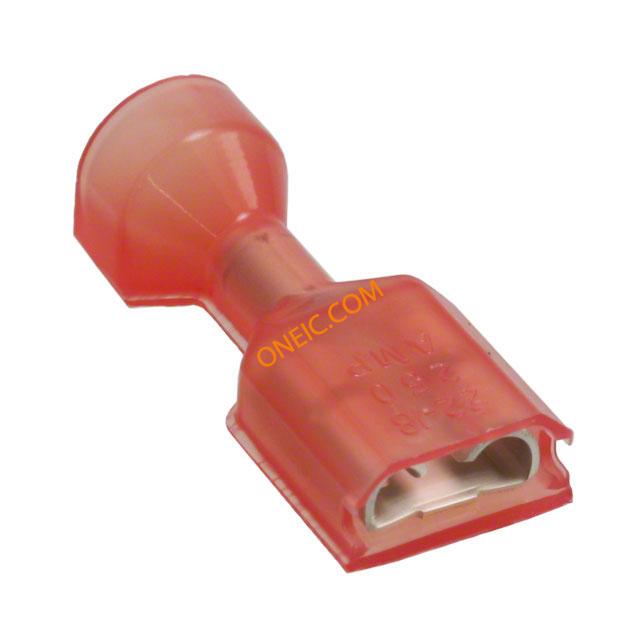

2-520264-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 24mm 10.38mm Tin Loose Piece Terminals ULTRA FAST 22-18AWG Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 18-22 AWG .250 Receptacle terminal, Ultra-Fast 250, red Quick Disconnect Terminal 18-22AWG RCP 24mm 10.38mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 6.3X0.8MM 250ULTRAFAST22-18TPBR Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .250 系列 红色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 ULTRAFAST 250 ASSY REC 22-18 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL, VDE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Red | 深度 | 10.38 mm |
| 表面处理 | Tin | 重量 | 0.098 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Crimp Terminal | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.409" | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 0.935" (23.75mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | :Red | 绝缘直径 | 5.84 [.230] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | Yes |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 外径-未扩张 | :5.84mm | ||
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 250 | CAD图纸 | 3D CAD Model |
| 应用 | Standard | 制造商全称 | ULTRA-FAST |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
