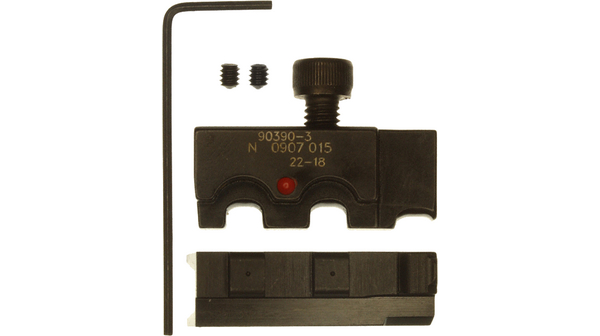

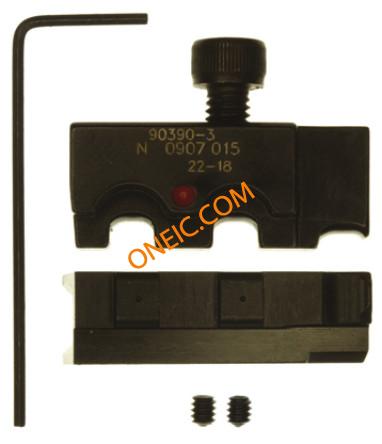

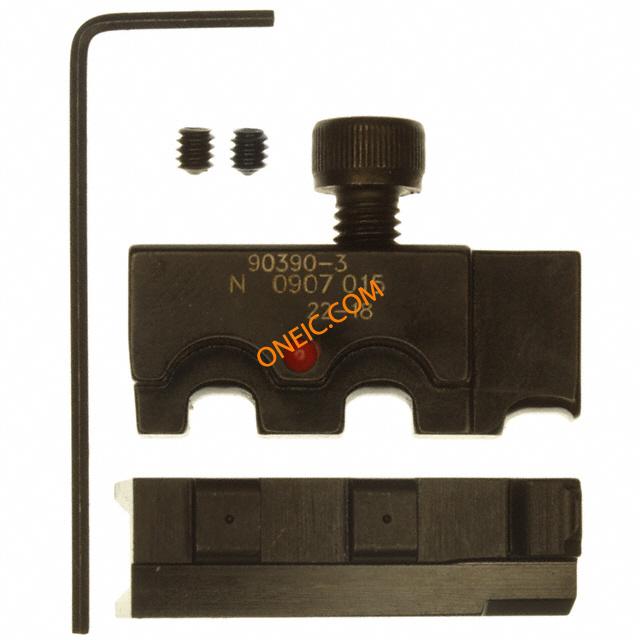

90390-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Crimp Die Set Punches & Dies DIE SET 22-18 AWG DIE SET ULTRA-FASTONS 22-18 AWG Crimping die, Ultra-Fast AWG 22-18 DIE SET, ULTRA FAST, 18-22AWG AMP;RATCHETDCRIMPTOOL;DIESONLY;FOR22-18AWG Crimping dies, 90390-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 压接模具 , 22 → 18 AWG 线规格, Ultra-Fast 接线端子 DIE ULTRA FAST 22-18 U/58078-3 |
| 分类 |
商业参数
| 产品 | Dies | 产品类别 | Punches & Dies |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
机械参数
| 重量 | 0.1 | 包装方式 | Bulk |
| 导线线规 | :0.25mm² | 配接方向 | :18AWG to 22AWG Terminals |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | :1.65mm² |
产品信息
| 类型 | Die Set | 系列 | :ULTRAFAST FASTON |
| 工具类型 | Die Set | 兼容工具 | 58078-3 |
| 射频系列/标准 | 9039 | 适用产品/相关产品 | Quick Connects Terminals, 16-22 AWG |
