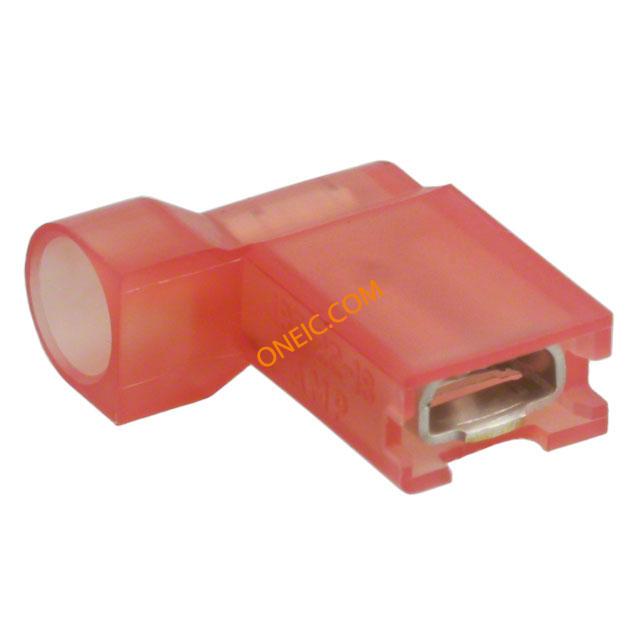

2-520337-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 16.14mm 13.08mm Tin Loose Piece Terminals ULTRA FAST FLAG 22-18 AWG Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 18-22 AWG .187 Flag terminal, Ultra-Fast 187, AWG 22-18 Quick Disconnect Terminal 18-22AWG F 16.14mm 13.08mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = FlagTab Fit = 4.75 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 4.8X0.8MM AMP;RECEPTACLE;FULLYINSULATEDFLAG;22-18AWG Terminal: flat; 4.8mm; 0.8mm; female; 0.3÷0.9mm2; crimped Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .187 系列 红色 绝缘 镀锡触芯 旗形压接端子 , 4.75 x 0.81mm ULTRA-FAST 187 ASY REC 22-18 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL, VDE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Red | 深度 | 13.08 mm |
| 宽度 | 4.8mm | 表面处理 | Tin |
| 重量 | 0.088 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 厚度 | 0.8mm | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 方向 | angled 90° |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.187 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 行程角度 | 90°(Flag) | 连接器类型 | :Spade |
| 接触镀层 | Tin | 安装样式 | for cable |
| 壳体镀层 | Tin | 连接器样式 | Flag |
| 总宽度 | 0.515" | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 16.14mm |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | Red | 绝缘直径 | 4.19 [.165] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | Yes |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 外径-未扩张 | :4.19mm | ||
产品信息
| SPG | 1000 | 类型 | Receptacle |
| 连接器性别 | Female | 系列 | 187 |
| CAD图纸 | 3D CAD Model | 应用 | Standard |
| 制造商全称 | ULTRA-FAST | 产品子类型 | Receptacle |
| 单元数量 | 1 | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
90390-3
te connectivity / amp
Connector Accessories Crimp Die Set Punches & Dies DIE SET 22-18 AWG DIE SET ULTRA-FASTONS 22-18 AWG Crimping die, Ultra-Fast AWG 22-18 DIE SET, ULTRA FAST, 18-22AWG AMP;RATCHETDCRIMPTOOL;DIESONLY;FOR22-18AWG Crimping dies, 90390-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 压接模具 , 22 → 18 AWG 线规格, Ultra-Fast 接线端子 DIE ULTRA FAST 22-18 U/58078-3
