点击放大查看

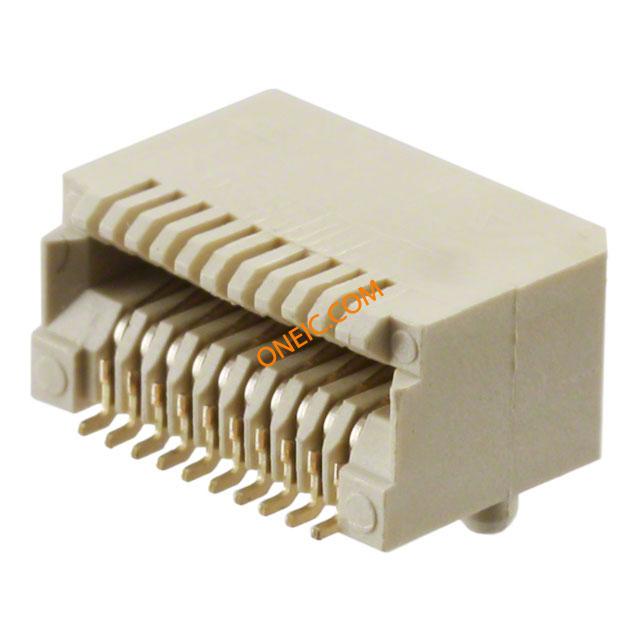

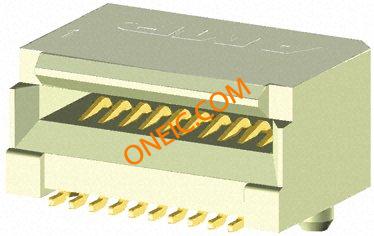

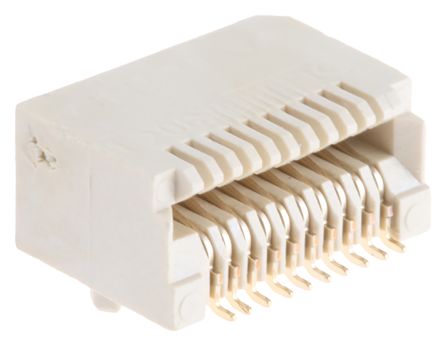

1888247-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SFP SKT 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Reel I/O Connectors Connector 20 pos 15u gold Pluggable Connectors, Cages, Transceivers & Accessories CONN PT USE W/SFP+ CAGE 15AU SMD Connector + Dust cap 20 way smt SFP+ Conn SFP+ RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Reel Conn SFP+ RCP 20 POS 0.8mm Solder RA SMD 20 Terminal 1 Port Reel Product Highlights:SFP Application, SFP+ ApplicationConnectorPCB Mount Style = Single Sided, Double Sided (Belly-to-Belly)Number of Positions = 20Termination Type = Surface MountSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO RECEPTACLE, 0.8MM, SFP+, 20WAY 20POSSMTCONN,SFP/SFP,15AU 20 Position Right Angle Surface Mount Pluggable Header Connector TE Connectivity 20路 母 SFP+连接器 , 金镀镍 磷铜触芯 20 POS SMT CONN, SFP/SFP+, 15A |
| 分类 |
商业参数
| 产品 | Infiniband Connectors | 其他名称 | A97944CT |
| 产品类别 | I/O Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 480 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 0.5/Contact A | 最小供电电压 | 120VAC |
机械参数
| 间距 | 0.8 mm | 高度 | 5.4 mm |
| 重量 | 0.1 | 材料（通用） | :LCP |
| 包装方式 | Reel | 端接方式 | Solder |
| 外壳颜色 | White | 安装类型 | Surface Mount |
| 连接器类型 | SFP+ | 接触镀层 | Gold |
| 安装样式 | SMD/SMT | 连接器样式 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 绝缘颜色 | Black | 总长度 | 11 mm |
| 包装数量 | Reel | 端接样式 | Solder Pad |
| 连接器颜色 | :White | 触点数 | 20 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 20 |
| 接触镀层厚度 | 15µin (0.38µm) | 第一连接器安装类型 | :PCB |
产品信息
| 备注 | Lubricant on contact. | 类型 | SFP |
| 连接器性别 | SKT | 产品特性 | Board Guide |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 端口数 | 1 | 加载位置数 | 20 |
环境参数
| 工作温度 | - 55 C to + 85 C | ||
