点击放大查看

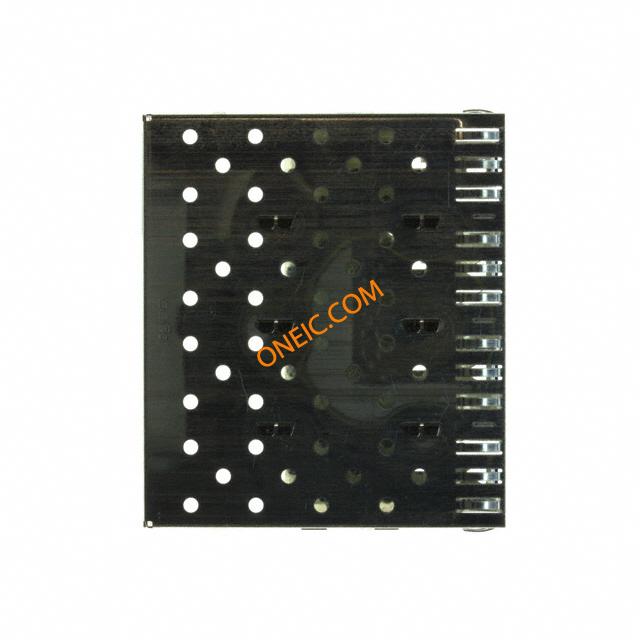

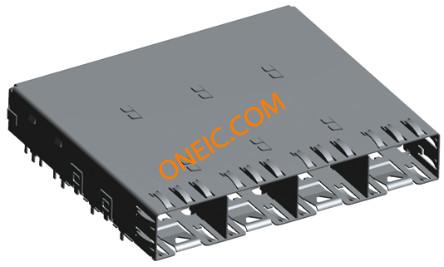

1658723-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 4 Port Solder SFP Cage Right Angle Copper Alloy Tin Over Nickel Finish Tray Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE 1X4 PIN-IN-PASTE Cage ganged 4 ports pluggable SFP I/O Connectors SFP CAGE 1X4 SLDR EMI Connector Accessories 4 Port SFP Cage Solder Right Angle Surface Mount Copper Alloy Tin over Nickel Finish Tray Connector Accessories 4 Port SFP Cage Solder Right Angle Surface Mount Copper Alloy Tin over Nickel Finish Tray Product Highlights:SFP ApplicationCageEMI Cage Type = GangedWithout Light Pipe1 x 4 ConfigurationSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO CAGE, GANGED, 1X4 1x4 Ganged SFP Cage Assembly |
| 分类 |
商业参数
| 产品 | SFP Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 间距 | 14.25 mm | 宽度 | 57.25mm |
| 高度 | 9.7mm | 长度 | 50mm |
| 重量 | 0.002 | 镀层 | Tin over Nickel Flash |
| 包装方式 | Tray | 发光颜色 | Without |
| 端接方式 | Pin-in-Paste Reflow | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | SFP | 接触镀层 | Tin over Nickel |
| 安装样式 | Single Sided | 连接器样式 | Cage, Ganged (1 x 4) |
| 触头材料 | Copper Alloy | 框架材料 | Copper Alloy |
| 包装数量 | Tray | 端接样式 | Solder Pin |
| 面板尺寸 | 9.7 x 57.25 x 48.7mm | 触点数 | 20 |
| 接触件端接 | :Solder | 端子柱长度 | 2.05 [0.081] |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SFP Cage | 连接器性别 | Male |
| 系列 | SFP | 产品特性 | EMI Shielded |
| 卡类型 | Ganged | 制造商全称 | AMP |
| 产品子类型 | Cage | 配置 | 1 x 4 |
| 附件类型 | :Connector Cage / Frame | 端口数 | 4 |
| 射频系列/标准 | 1658723 | 适用产品/相关产品 | :Small Form-Factor Pluggable Connectors |
