点击放大查看

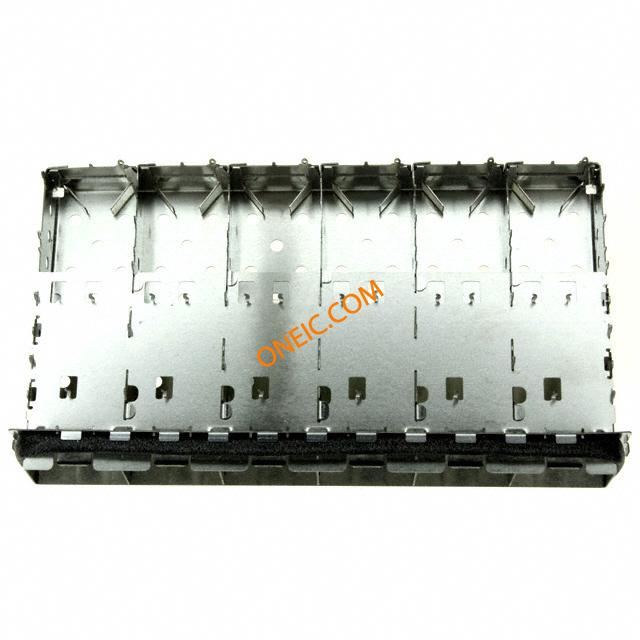

2007170-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 6 Port SFP Cage Nickel Silver Finish Tray I/O Connectors Cage 1x6 EMI Shield CONN SFP+ CAGE 1X6 EMI GASKET Connector Accessories 6 Port SFP Cage Nickel Silver Finish Tray Search Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO SFP+PressFit EMIShielded1x6CageAssm |
| 分类 |
商业参数
| 产品 | SFP Connectors | 其他名称 | A97930 |
| 产品类别 | I/O Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 数据速率（最大） | 16 | ||
机械参数
| 尺寸 | SFP+ | 深度 | 48.7 mm |
| 包装方式 | Bulk | 端接方式 | Press-Fit |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | SFP+ |
| 安装样式 | Through Hole | 连接器样式 | Cage, Ganged (1 x 6) |
| 壳体材料 | Nickel Silver | 总长度 | 90.85 mm |
| 框架材料 | Nickel Silver | 面板安装类型 | 通孔 - 免焊连接 |
| 端接样式 | Press Fit | 兼容外壳尺寸（如TM-700等） | SFP+ SMT 连接器 |
| 触头长度-柱 | 2.05 mm [ .081 in ] | ||
产品信息
| 类型 | SFP Cage | 系列 | SFP+ |
| 产品特性 | EMI Shielded | 卡类型 | Ganged |
| 端口样式 | 1 x 6 | 产品子类型 | 壳体 |
| 附件类型 | Cage Assembly, 1x6 Ganged | 端口数 | 6 |
| 射频系列/标准 | 2007170 | 其他规格 | Elastomeric Gasket |
| 输入数量及类型 | 6 | ||
环境参数
| 热保护 | No | 封装热阻 | 1.5 mm [ .059 in ] |
