点击放大查看

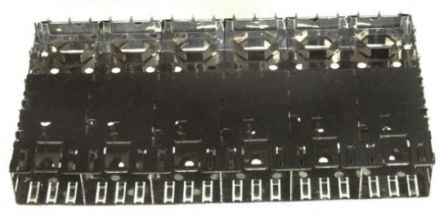

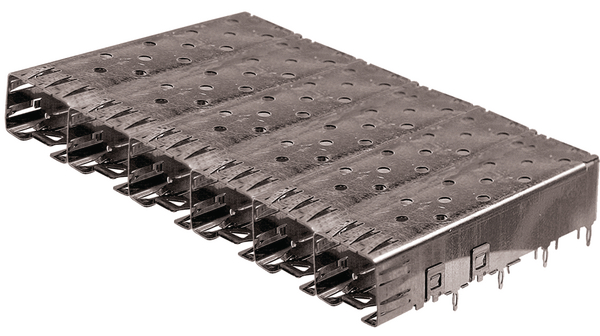

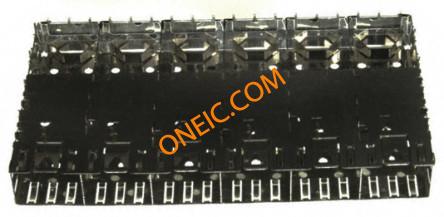

1761015-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 6 Port Press Fit SFP Cage Right Angle Copper Alloy Tin Over Nickel Tray Pluggable Connectors, Cages, Transceivers & Accessories CONN SFP CAGE 1X6 PRESS FIT SFP cage assembly , press fit, 6 port I/O Connectors 1 X 6 SFP CAGE PRESS FIT Connector Accessories 6 Port SFP Cage Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Connector Accessories 6 Port SFP Cage Press Fit Right Angle Through Hole Copper Alloy Tin over Nickel Flash Finish Tray Product Highlights:SFP ApplicationCageCage Type = GangedWithout Light Pipe1 x 6 ConfigurationSearch Keywords:high speed, fiber optic, input/output, NIC, Network Interface Cards, PC Cards, 1000BASE-SX, 1000BASE-CX, 1000BASE-LX, OC192/STM-64, G.709, 10 G Fibre Channel, SONET, 10 G Ethernet, 10G Ethernet, Multi-Source Agreement (MSA), FC XAUI, OIF SFI-4 Phase2, pluggable I/O, box to box, everclear, CFP, 100Gb/s ethernet, 10 Gb/s, 16 Gb/s, HSIO CAGE, GANGED, 1X6 SFP Application Ganged Cage without Light Pipe 1x6 configuration SFP cage 1x6P, 1761015-1, TE Connectivity TE Connectivity SFP 系列 6 端口 直 SFP 笼, 按压安装 端接, 8.95 x 85.75 x 50mm |
| 分类 |
商业参数
| 产品 | SFP Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 90 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 50 mm | 间距 | 14.25 mm |
| 宽度 | 50mm | 高度 | 8.95mm |
| 长度 | 85.75mm | 重量 | 0.002 |
| 镀层 | Tin over Nickel Flash | 直径 | Not Required mm |
| 包装方式 | Tray | 发光颜色 | Without |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | SFP | 接触镀层 | Tin over Nickel |
| 安装样式 | Double Sided | 连接器样式 | Cage, Ganged (1 x 6) |
| 触头材料 | Copper Alloy | 壳体材料 | Copper |
| 总长度 | 85.75 mm | 框架材料 | Copper Alloy |
| 包装数量 | Tray | 端接样式 | Press Fit |
| 面板尺寸 | 85.75 x 50 x 8.95mm | 触点数 | 6 |
| 端子柱长度 | 2.05 [0.081] | ||
产品信息
| 类型 | SFP Cage | 连接器性别 | Female |
| 系列 | SFP | 产品特性 | EMI Shielded |
| 卡类型 | Ganged | 制造商全称 | AMP |
| 产品子类型 | Cage | 配置 | 1 x 6 |
| 附件类型 | :Cage | 端口数 | 6 |
| 射频系列/标准 | 1761015 | 适用产品/相关产品 | :Small Form-Factor Pluggable Connectors |
